Jazzy Air 2®
FDA Class II Medical Device
Elevate your inspiring journey at the touch of a button.
The way you move through life shouldn’t be limited by a power
chair. The future of mobility is here, and the choice is yours.
|
|
The Jazzy Air
2® elevates to the primary standing height position
in just 12 seconds, providing quick environmental access to
countertops, table tops, cabinetry and shelving. In addition,
the Jazzy Air safely drives at speeds up to 3.5 mph while
elevated, allowing users to experience face-to-face social
engagement. |
 |
 |
Whether at home, or on the town, the unique appeal of Jazzy Air
will elevate your independence and social confidence in style.
Jazzy Air empowers! |
| Elevates or lowers on the move with the touch of the "Air"
button; stationary height adjustment via the PG VR 2 joystick
drive controller. |
 |
 |
- 11"
of power adjustable seat height in 12 seconds
-
Maximum speed up to 3.5 MPH (elevated) and 4 MPH
(non-elevated)
|
| Mid-Wheel 6® Drive Design with Active-Trac® Suspension for
enhanced performance and maximum stability both indoors and
out |
 |
 |
16" x
16"-18" depth-adjustable high-back reclining sport seat.
Choice of 18”x18”-20”, 20”x20”-22” depth-adjustable,
fold-flat, high-back reclining sport seat.
And
Choice of 16”x16”-18”, 18”x18”-20”, 20”x20”-22” Solid Seat
Pan, depth-adjustable, fold-flat, high-back reclining seat.
|
Angle, height and depth adjustable armrests
Integrated seat and foot plate design with 3-position
height and angle adjustment. |
 |
 |
|
Bright LED marker lights
A per charge range up to 18.4 miles
60" lap belt
|
|
The Jazzy Air has quickly become the worlds most popular
power wheelchair with a power elevating seat. |
 |
| Jazzy Air Key Features
|
| |
One-Touch Elevation
Elevates or lowers on the more with the touch of the “Air”
button. |
|

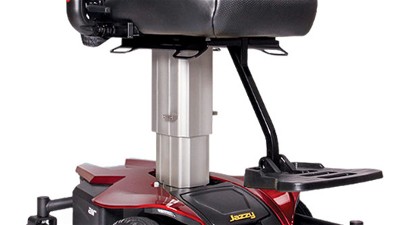

Fast Rise
11” of power adjustable seat height in 12 seconds. |
 |
 |

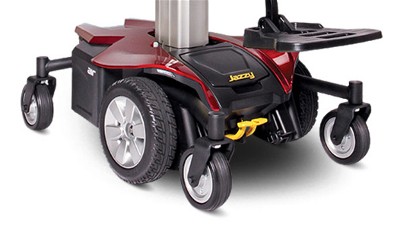

Mid-wheel 6® with Active-Trac® Suspension
Enhanced performance and maximum stability both indoors and
out. |
Jazzy Air 2 ® Specs
Specifications for the Jazzy Air
|

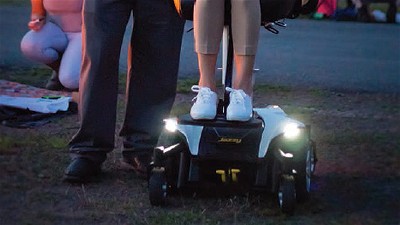

Bright LED Lighting
Visibility in all environments.
|
| |
40ah |
28ah |
|
Turning Radius: |
22.50" |
22.50" |
|
Ground Clearance: |
2.42" |
2.42" |
|
Top Speed: |
4.00 mph |
3.70 mph |
|
Heaviest Part: |
181 lbs. |
181 lbs. |
|
Incline Stability: |
6 º |
6 º |
| Range: |
18.40 miles |
15.29 miles |
|
Armrest: |
Height Adjustable
Width Adjustable |
Height Adjustable
Width Adjustable |
|
Options For Seat: |
Power Elevating Seat
Captain's Seat |
Power Elevating Seat
Captain's Seat |
|
Seat Width: |
16" |
18" |
20" |
16" | 18"
|
20" |
|
Seat Depth: |
16" |
18" |
20" |
22" |
16" |
18" |
20" |
22" |
|
Seat Height: |
23" to 33" |
23" to 33" |
|
Maximum Seat to Floor
Height: |
33" |
33" |
|
Width: |
23.38" |
23.38" |
|
Length: |
38" |
38" |
|
Batteries: |
12v (40 AH X 2) X 2 |
12v (28 AH X 2) X 2 |
|
Center Drive Wheel: |
10" |
10" |
|
Front Wheels: |
6" |
6" |
|
Rear Wheels: |
6" |
6" |
|
Base: |
140.00 lbs. |
140.00 lbs. |
|
Seat: |
41.00 lbs. |
41.00 lbs. |
|
Battery Pack: |
64.40 lbs. |
50.00 lbs. |
|
Weight Without Batteries: |
181.00 lbs. |
181.00 lbs. |
| Testing
Standards & Warranty
Pride FDA Class II Medical Devices are designed to aid
individuals with mobility impairments
Meeting and Exceeding High Standards for your Peace of
Mind.
Your Pride product has undergone thorough product
testing to ensure safety, durability and performance.
Our power chairs, scooters and lift chairs are Food &
Drug Administration (FDA) approved medical products that
require specific testing prior to release for public
use.
The testing requirements accepted by the FDA were
developed by the American National Standards
Institute/Rehabilitation Engineering & Assistive
Technology Society of North America (ANSI/RESNA).
The tests are conducted in accordance with the
requirements of the ANSI/RESNA Test Standards and
complement an additional stringent testing regiment
developed by Pride's Research & Development Team.
All products have passed, and in many cases, exceeded
test criteria set forth, assuring the high level of
quality synonymous with Pride.
Some of the items our testing criteria include are:
Product Stability & Brakes Effectiveness Tests
Fatigue & Impact Strength Verification Tests
Overall Product Performance Verification
Dimensional Requirement Compliance
Product Durability & Reliability Testing
Material Protective Coating Testing Verification
Misuse and Abuse Testing
Ergonomic Verification
Environmental Testing for Adverse Weather Operation
Conditions
Electronic Systems Performance and Durability
Chemical and Bio-Contamination Analysis Testing for
Toxicity Verification
Cal 117 Flammability Test Compliance for Seating Foam
and Fabric Components
UL94VO Flammability Testing for Compliance of Plastic
Components
Electromagnetic Compatibility (EMC)
Warranty
5-Year limited warranty on frame
13-month limited warranty on electronics
13-month limited warranty on drive motor
|
| |
|
| |
|
