The Welter
Weight (Light Duty) Scooter & Wheelchair Lift
Designed for Lifting Lightweight Scooters & Or
Wheelchairs Weighing Less Then 88 Pounds In & Out Of
A Vehicle. |
|
The Welter
Weight (Light Duty) Scooter & Wheelchair Lift Is The
Worlds Only Lift That Can Be Installed In Some Cases
With No Need For Tools. The Vehicle Type And Model
Determines If The Lift Can Be Installed Inside The
Vehicle. |
 |
 |
|
No Wires
Are Required For Installing The Welter Weight Lift.
No Power Wires Or Control
Wires Required For Installation. |
|
The
Welter Weight Works In Some Of The Most Confined
Spaces. Please Consult With Your Professional
Installer To Determine How It Will Work For Your
Application. |
 |
 |
|
Tools In
Some Cases Are Not Needed. The Positive & Negative
Pressure Jack Is All That Is Needed. In Other Cases
A More Aggressive Approach Is Required To Install
The Welter Weight. However In All Cases No Wiring Is
Required Making It The Easiest Install In The
Industry. |
|
The
Image To The Right Shows What Anatomy A Vehicle
Would Need For The Idea Application. |
 |
 |
|

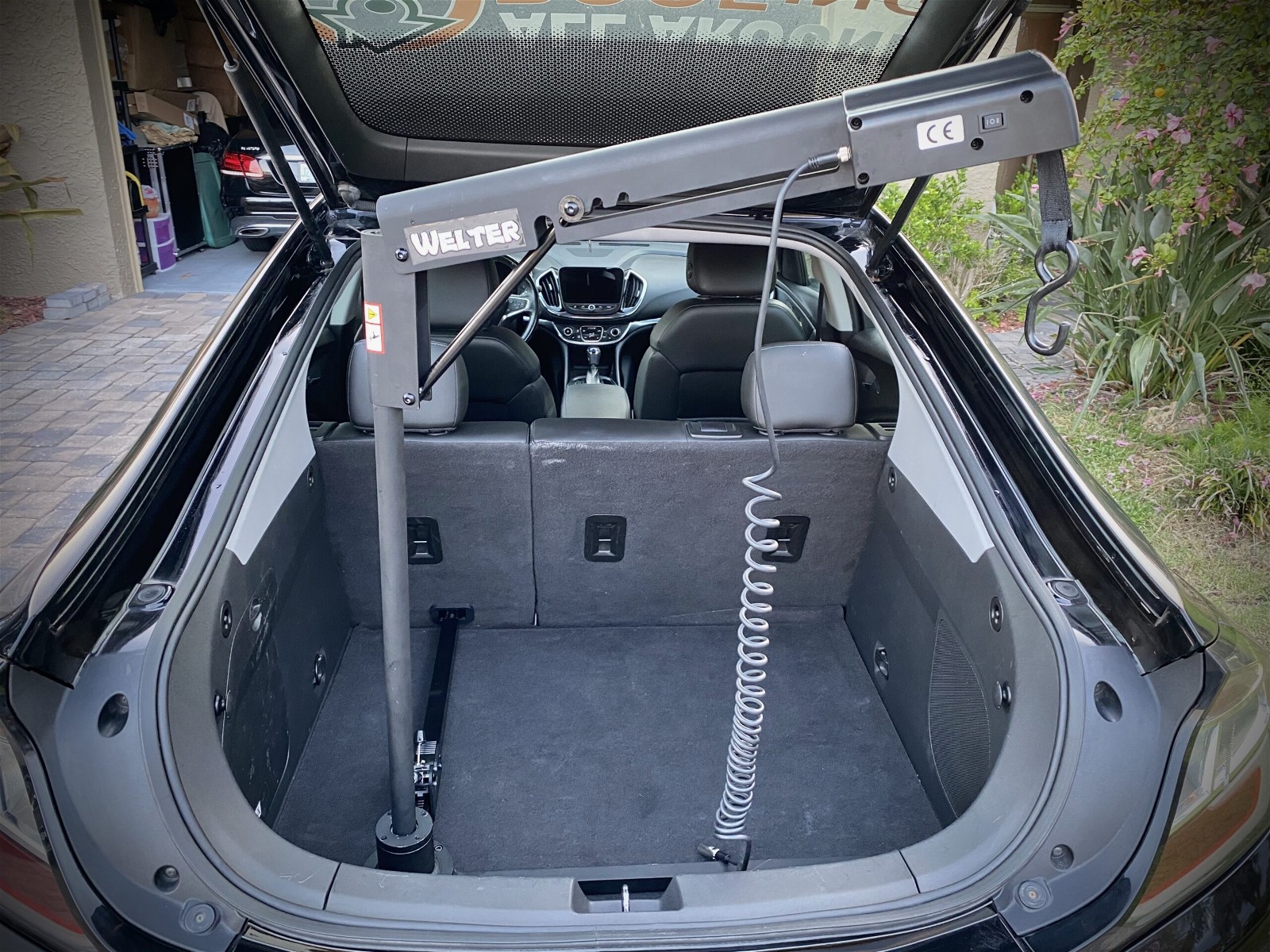

The Photo
To The Left Show What the Space In The Back Of The
Vehicle Would Look Like.
Please Be Sure To Review
Spec, Manual & Video Below. |
|
Power The Hitch
Adaptor Shown To The Right Allows The Welter To
Work With Most Any Vehicle. The Lower Part The
Adaptor Is The Only Part That Stays Outside The
Vehicle. The Lift Itself Gets Placed Inside The
Vehicle When Not In Use. |
|
| |
|
|
 |
 |
| |
Although The
Welter Weight Works Great Installed Both Inside
The Vehicle As Well As Hitch Mounting The Lift,
Choosing The Hitch Mounted Option Of Insulation
Makes The Welter Even More Flexible Then When
Installed Inside The Vehicle.
|
|
|

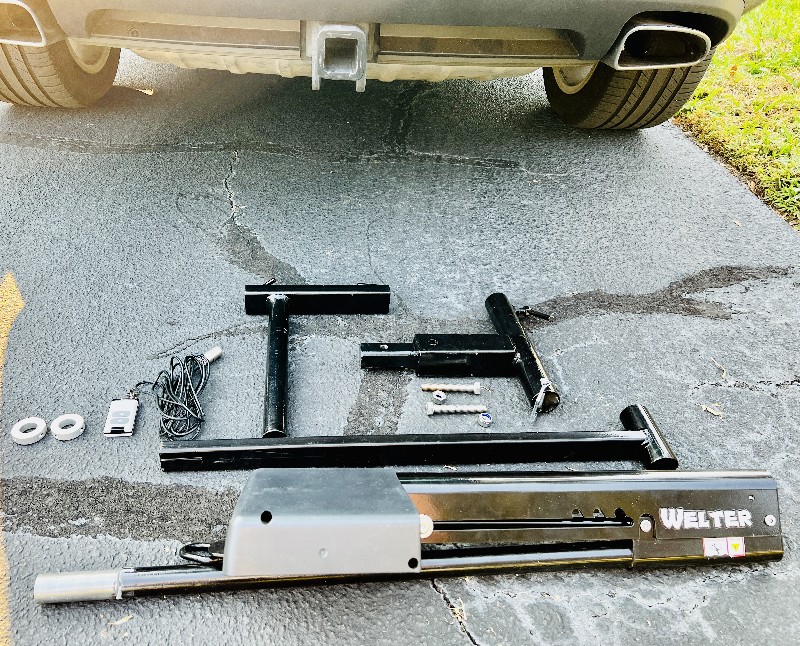

See The Photo Of
All The Parts Used As Relates To A Hitch Mounted
Install.
(Click Photo To
Enlarge) |
 |
 |
| |
The Docking Device
Shown To The Left Consisting Of To Aluminum
Colors That Clamp Around Round Tubing Prevent
The Attachment Hook From Sliding In Any
Direction.. |
|
|
|
|
|
Users May Power
The Welter Weight Lift One Of Two Way's.
1st: Simply Plug
Into XLR Port Of The Scooter Or Wheelchair You Are
Lifting.
2nd: Purchase The
Optional Battery Pack (Shown To The Right) Compact,
Portable & Easy To Manage. |
|
|
 |
|
.jpg) |
Wireless Remote
Transmitter
In Addition To The
Switch On The Welter Itself We Include A Wireless
Remote Transmitter That Allows The User To Operate
The Welter Weight Hands Free |
