Pride
Maxima 4
Wheel Scooter
|
FDA Class II Medical Device

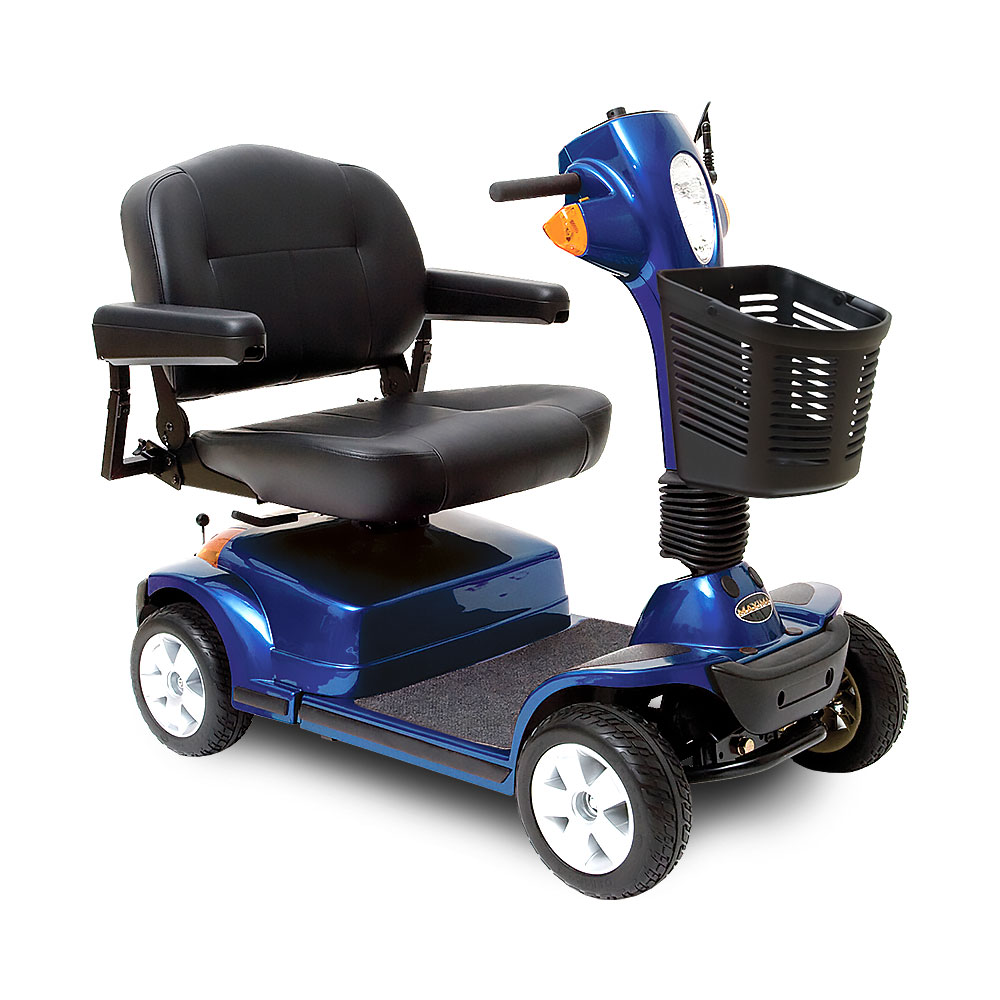

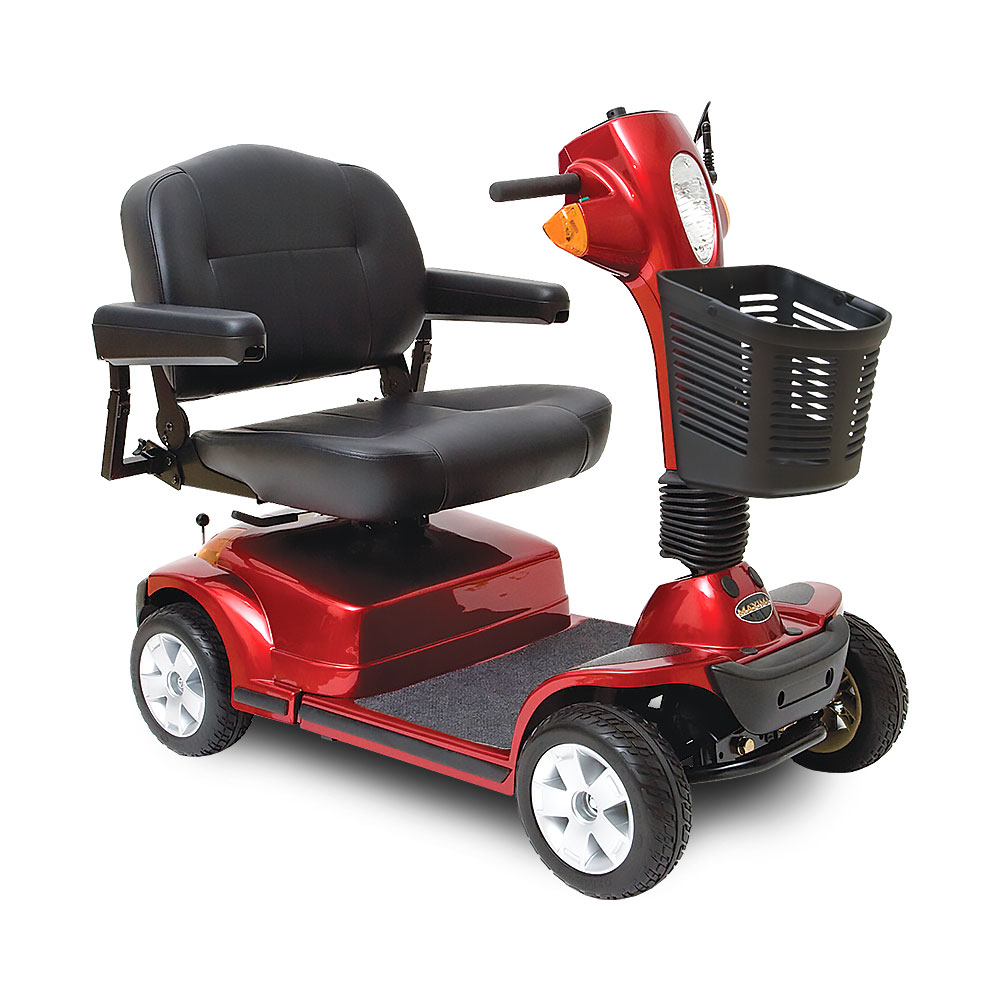

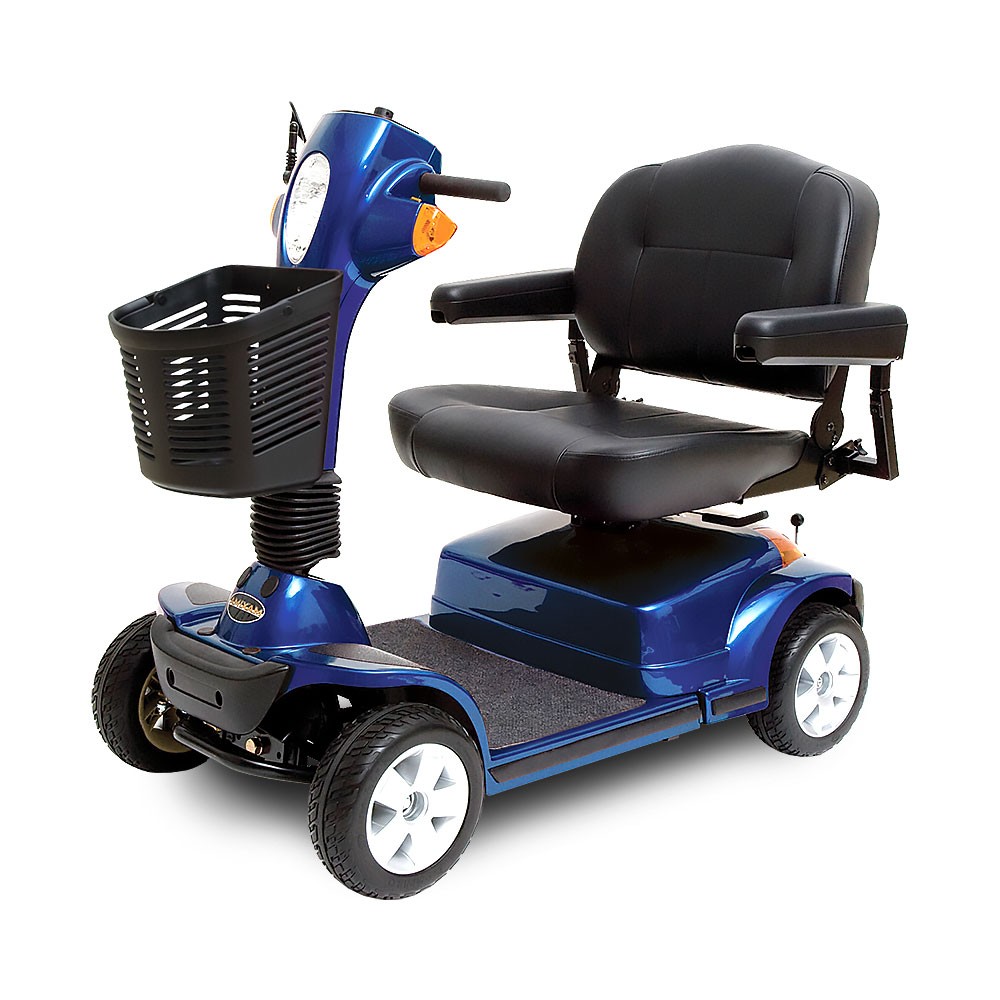

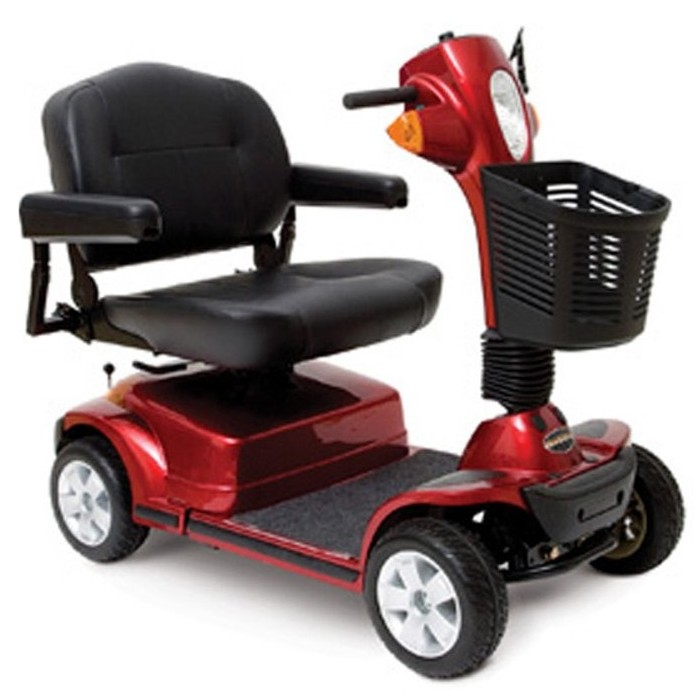

Overview of the Maxima 4-Wheel
The redesigned Pride Mobility Maxima 4-wheel motorized
scooter brings outstanding performance and elegant styling
together with rugged construction for a weight capacity of up to 500 pounds. Great
standard features include upgraded electronics and an ultra
heavy-duty drive train for more power and a redesigned,
thicker seat for greater comfort. The Maxima also features
an easily adjustable tiller, front headlight, durable
one-piece frame construction and whisper-quiet drive train.
|
Built In The USA
Maxima 4-Wheel Features:
500 lbs. weight capacity
Up to 5.3 mph maximum speed
54" turning radius
Up to 16 miles per charge
22" x 18" Deluxe contoured, medium-back, black vinyl seat
5-amp, off-board battery charger
Black, flat-free, non-scuffing tires
Easily adjustable tiller
Standard front basket
Ultra heavy-duty drive train with 110-amp controller
Durable and stylish rear polyurethane bumper
Easily accessible tie down points (Non Occupied)

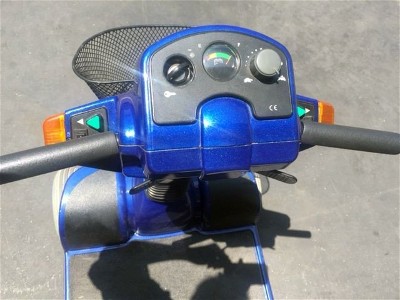

User-friendly console
HCPCS Code: K0808 - Group 2 Very Heavy Duty.
Want Both High Performance
&
Portable.
|
|
|
The Pride Maxima 4
Wheel Scooter has a great look with the non-marking black
tires and silver hubcaps, it also provides a very stable
ride. The Maxima is made in the USA and is recommended by
the VA so you know it has to be good. It also has a power
seat option for an additional 5" of seat height to reach
higher cabinets and shelves. This scooter comes with a
FREE
1-Year In-Home Service. If you experience a problem with
your scooter during the first twelve months, simply call us
and speak with a in house technician and he will then
arrange for a technician to come to your home for diagnosis
and repair. |
The Maxima has been around for quite some time and is a
durable, reliable scooter. It has a high weight capacity and
a strong motor that can easily handle up to 500 pounds. It
also has an option to upgrade the batteries for a greater
drive range between charges. The charging port is located on
the tiller, making it a breeze to access. |
|
|
The
Craftsmen XL Carrier Is The Perfect Solution For
Transporting The Maxima Mobility Scooter.
The Craftsmen (2) In (1) 550 XL
Carrier's loading ramp is 33" wide by 64" long providing a
gradual slope for easy loading of your scooter or
wheelchair. A solid position handle on the ramp allows for
easy folding and unfolding and tie down straps are included
with rubber coated hooks which can be hooked onto any of the
10 tie down holes featured on the 4 1/4" tall ramp sides.
The ramp is easily attached even after the carrier has been
attached to the vehicle making the installation very easy.
The rear of the carrier has 2 reflectors for greater
visibility at night. |
Heavy duty performance at an exceptional value.
The Maxima Scooter features an ultra heavy duty drive train and a
large, deep seat to deliver maximum performance at an
exceptional value.
Engineered with the bariatric market in mind, the Maxima
features a weight capacity of 500 lbs., a max speed up to 5.25
mph, adjustable tiller and an ergonomically enhanced design.
-
500 lb. weight capacity.
-
Black, flat-free, non-marking tires.
-
Standard front basket.
-
Ultra heavy-duty drivetrain with 110 amp controller.
-
Maximum speed up to 5.25 mph.
-
Redesigned seat for improved comfort.
-
Easily adjustable tiller.
-
Durable and stylish rear polyurethane bumper.
-
Easily accessible tie down points (for transport of unoccupied
scooter)
-
User-friendly console.
Model |
Maxima 3 Wheel |
Maxima 4 Wheel |
Model Number |
SC900 |
SC940 |
Front Tires |
3" x 10" Solid |
3" x 10" Solid |
Rear Tires |
4" x 10" Solid |
4" x 10" Solid |
Maximum Speed* |
Up to 5.25 MPH |
Up to 5.25 MPH |
Ground Clearance |
4.25" at mid frame |
3.25" at mid frame |
Turning Radius** |
50.38" |
54" |
Overall Length** |
46" |
46.9" |
Overall Width of Base** |
25.5" |
25.5" |
Seat-to-Ground Height Range |
22.5"-24.5" |
22.5"-24.5" |
Seat Type |
Deluxe Contoured Medium-back (22"x18") |
Deluxe Contoured Medium-back (22"x18") |
Weight** |
171 lbs. |
176 lbs. |
Seat-to-Deck Height Range |
16"-18" |
16"-18" |
Battery Weight |
38 lbs. ea. (NF-22 or 55AH), 24.5 lbs. ea. (U-1) |
38 lbs. ea. (NF-22 or 55AH) |
Battery Requirements |
(2) NF-22, (2) U-1 (power elevating seat) |
(2) NF-22 |
Maximum Range Per Charge* |
Up to 18 miles, U-1 (power elevating seat) up to 9.6 miles |
Up to 16 miles |
Battery Charger |
Off-board, 5A |
Off-board, 5A |
Suspension |
Rear |
Front & Rear |
Maximum Weight Capacity |
500 lbs. |
500 lbs. |
Standard Body Colors |
Candy Apple Red, Viper Blue |
Candy Apple Red, Viper Blue |
Weight of Heaviest Piece** |
76 lbs. (Rear section) |
76 lbs. (Rear section) |
Medicare Code Coverage |
K0802 - Group 1 Very Heavy Duty |
K0808 - Group 2 Very Heavy Duty |
Warranty |
Lifetime limited on frame;
2-Year limited on Electronics;
2-Year limited on Drivetrain |
Lifetime limited on frame;
2-Year limited on Electronics;
2-Year limited on Drivetrain |
Information & Marking |
Pride
Maxima Marketing |
|
Owners Manual |
Manual |
|
Video |
Watch The Pride
Maxima In Action |
|
Meeting and Exceeding High Standards for your Peace of Mind.
Pride FDA Class II Medical Devices are designed to aid
individuals with mobility impairments.
Your Pride product has undergone thorough product testing to
ensure safety, durability and performance.
Our power chairs, scooters and lift chairs are Food & Drug
Administration (FDA) approved medical products that require
specific testing prior to release for public use.
The testing requirements accepted by the FDA were developed by
the American National Standards Institute/Rehabilitation
Engineering & Assistive Technology Society of North America
(ANSI/RESNA).
The tests are conducted in accordance with the requirements of
the ANSI/RESNA Test Standards and complement an additional
stringent testing regiment developed by Pride's Research &
Development Team.
All products have passed, and in many cases, exceeded test
criteria set forth, assuring the high level of quality
synonymous with Pride.
Some of the items our testing criteria include are:
- Product Stability & Brakes
Effectiveness Tests
- Fatigue & Impact Strength
Verification Tests
- Overall Product
Performance Verification
- Dimensional Requirement
Compliance
- Product Durability &
Reliability Testing
- Material Protective
Coating Testing Verification
- Misuse and Abuse Testing
- Ergonomic Verification
- Environmental Testing for
Adverse Weather Operation Conditions
- Electronic Systems
Performance and Durability
- Chemical and
Bio-Contamination Analysis Testing for Toxicity Verification
- Cal 117 Flammability Test
Compliance for Seating Foam and Fabric Components
- UL94VO Flammability
Testing for Compliance of Plastic Components
- Electromagnetic
Compatibility (EMC)
|
