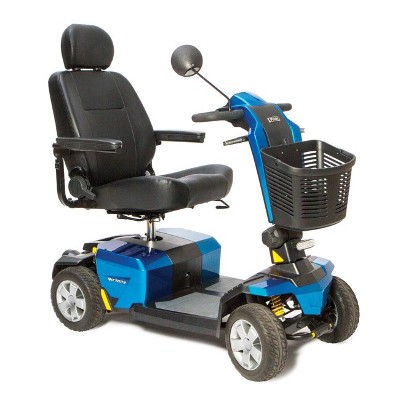

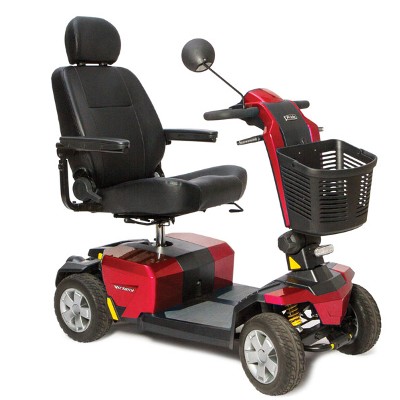

S710LXW Victory LX Sport 4 Wheel Scooter
|
The sturdy Victory LX
Sport with CTS Suspension has a 400 lb weight capacity. 10
inch solid tires are worry free, yet the CTS suspension
gives you the ride you want when you’re outdoors and on the
go! A full LED Light package is standard with head lamps,
tail lamps, turn signals, and a courtesy light under the
tiller for convenience and safety after dark. The newly
designed tiller is constructed with built in additional
storage at the base. |
The Victory LX
Sport with CTS Suspension is ideal for around-the-town use,
whether it’s in your neighborhood or around the park. The
scooter’s 47-inch deck is great for riders over 6 feet,
giving you more legroom. The delta tiller’s wraparound
handles are easy-to-control and a good option for those with
limited hand dexterity. Charging is made simple on the
Victory LX Sport with CTS Suspension with an easy access
charging port located on the tiller. This scooter comes with
1-Year In-Home Service free. If you experience a problem
with your scooter during the first twelve months, simply
call us to arrange for a technician to come to your home for
diagnosis and repair.
Full front and rear CTS
suspension
Full LED Lighting package
Handy charging port on the tiller
High Back Captains seat
Top Speed: 5.60 mph
Drive Range: 16.00 miles
Heaviest Piece: 77.6 lbs.
Weight capacity: 400 lbs.
Weight: 211.5 lbs. |
|
|
The Victory 10 LX
with CTS suspension is the newest version of Prides popular
line of Victory scooters, incorporating advanced technology
and built-in upgrades for comfort and convenience. The front
and rear Comfort-Trac suspension is a huge feature in riding
comfort- smoothing out the every day bumps-in-the-road for a
better riding experience. The comfortable High Back Captains
seat comes in the standard 18 X 18 inch size, and can be
upgraded to a 22” inch wide seat Designed with Pride’s
Feather-ouch disassembly, this full-sized scooter can still
be disassembled, if desired, for transport. The powerful 40
AH batteries travel up to 16 miles on a charge. |
A smooth ride for your active lifestyle.
The Victory® 10
LX with CTS Suspension offers a smooth ride with performance to
match.
Comfort-Trac Suspension (CTS) is the next generation in mobility
scooter ride comfort. Pride® Mobility's
industry first technology incorporates advanced suspension
components for improved absorption over rough surfaces and a
more comfortable ride experience over various terrains.
-
Comfort-Trac front and rear suspension
-
Feather-touch disassembly permits simple frame separation with
only one hand
-
Delta tiller with wraparound handles
-
Crush Proof Front Basket
-
Black, non-scuffing tires
-
Back-lit battery gauge
-
Full LED lighting package that includes curb and rear lights,
directional signals and courtesy light under tiller
-
Auto connecting front to rear harness
-
Easy Grip Tiller adjustment knob
-
Easy access tiller-mounted charger port
-
Storage compartment below tiller
-
Enhanced flush-mounted horn buttons
Model |
Victory 10 LX with CTS Suspension |
Model Number |
S710LX |
Front Tires |
3.5" x 10" Solid |
Rear Tires |
3.5" x 10" Solid |
Maximum Speed* |
Up to 5.6 mph |
Ground Clearance |
2.2" at motor |
Turning Radius** |
59.9" |
Overall Length** |
47" |
Overall Width of Base** |
22.2" |
Seat-to-Ground Height Range |
23.5"-25.5" |
Seat Type |
Reclining High-back with sliders & headrest (18x18) |
Weight** |
179 lbs. |
Seat-to-Deck Height Range |
16.5"-18.5” |
Battery Weight |
32.5 lbs. each |
Battery Requirements |
(2)40AH |
Maximum Range Per Charge* |
Up to 16.16 miles |
Battery Charger |
Off-board, 5A |
Suspension |
Front and Rear |
Maximum Weight Capacity |
400 lbs. |
Standard Body Colors |
Candy Apple Red, True Blue |
Weight of Heaviest Piece** |
77.6 lbs. (Front section) |
Warranty |
Lifetime limited on frame;
2-Year limited on Electronics;
2-Year limited on Drivetrain |
Owners Manual |
Manual |
Promo Information |
Promotional
Sheet |
Video |
Pride victory 10 lx mobility scooter.mp4 |
Meeting and Exceeding High Standards for your Peace of Mind.
Your Pride product has undergone thorough product testing to
ensure safety, durability and performance.
Our power chairs, scooters and lift chairs are Food & Drug
Administration (FDA) approved medical products that require
specific testing prior to release for public use.
The testing requirements accepted by the FDA were developed by
the American National Standards Institute/Rehabilitation
Engineering & Assistive Technology Society of North America
(ANSI/RESNA).
The tests are conducted in accordance with the requirements of
the ANSI/RESNA Test Standards and complement an additional
stringent testing regiment developed by Pride's Research &
Development Team.
All products have passed, and in many cases, exceeded test
criteria set forth, assuring the high level of quality
synonymous with Pride.
Some of the items our testing criteria include are:
- Product Stability & Brakes
Effectiveness Tests
- Fatigue & Impact Strength
Verification Tests
- Overall Product
Performance Verification
- Dimensional Requirement
Compliance
- Product Durability &
Reliability Testing
- Material Protective
Coating Testing Verification
- Misuse and Abuse Testing
- Ergonomic Verification
- Environmental Testing for
Adverse Weather Operation Conditions
- Electronic Systems
Performance and Durability
- Chemical and
Bio-Contamination Analysis Testing for Toxicity Verification
- Cal 117 Flammability Test
Compliance for Seating Foam and Fabric Components
- UL94VO Flammability
Testing for Compliance of Plastic Components
- Electromagnetic
Compatibility (EMC)
|
