The Pinnacle
SL300 Stair Lift is Americas favorite stairway lift.
People are choose the Pinnacle stairway lift over
others more and more every day. The Pinnacle SL300
is a great product for your home at a great value.
The Pinnacle SL 300 Stair Lift was designed to
require almost no maintenance to keep it running
smoothly for years and years.
The Pinnacle 300
Stair Lift has an innovative design, solid
performance and reliability as well as the patented drive
system that makes it different from all the rest.

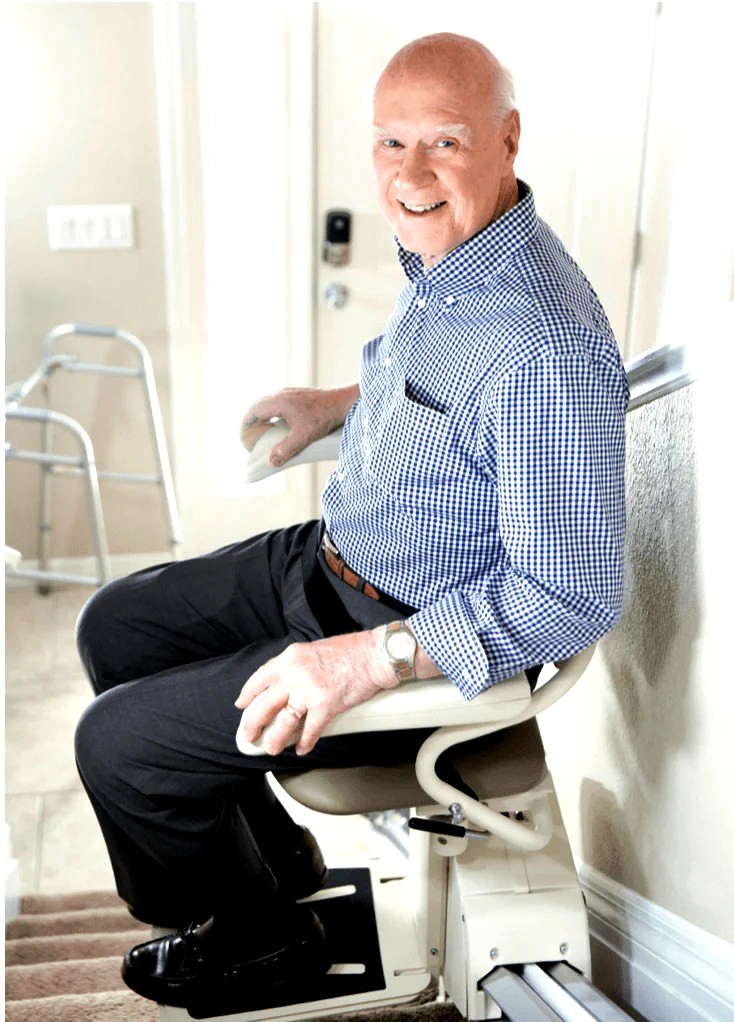

Going up? The Harmar Pinnacle SL300 Stairlift is
the perfect solution to effortlessly access
every floor in your home. With a lifting
capacity of 300 pounds, the SL300 ensures a safe
and comfortable ride up and down the stairs.
This model is
designed to be exceptionally clean, with no need for
grease or lubrication, keeping your home and pets
mess-free.
The two wireless transmitters (included free)
give users the freedom to call the
Pinnacle SL-300 to them in the event the chair
was up stairs and you were downstairs, simply
press the button on your wireless transmitter
and the SL-300 comes to you.
Ideal for narrow
staircases, the SL300 boasts the industry's most
compact design when folded, with the rail mounted
just 1 inch from the wall and standing only 3 inches
tall. This stairlift offers smooth and efficient
power seat swivel and power footrest options for
easy mounting and dismounting.
An efficient motor paired with a nylon polymer
gear/worm drive allows the SL300 to operate up
to 60 cycles on battery power during outages,
ensuring uninterrupted access.
The Harmar
Pinnacle SL300 has a oversized worm gear that provides
enhanced stability, and safety sensors in the
footrest and optional chassis sensors stop the lift
if an obstruction is detected.
Robust battery
life delivers up to 40 trips up and back down in a
power outage.
Swivel seat at upper landing.
No grease or lubrication needed – low maintenance.
Weight capacity: 300 lbs.
With its
symmetrical design, compact folded width, and two
included remotes, the Pinnacle SL300 is a top choice
for those seeking a reliable and space-saving
stairlift solution.
Weight Capacity
300 lb
Seat Size
Seat: 19"W x 16"D
Back:16.5"W x 9.5"H
Speed
20 FPM
Folded Width
11"; 13.6" with folding rail
Track Length
15'6" Standard
Up to 36'
Incline Limits
27° - 52°
(inclines above 45° may require local jurisdiction
approval)
1. Determine Left or
Right Side: From the bottom of your staircase looking
up, determine on which side you want the lift installed.
Because the lift mounts to the stairs and not the wall, you
may choose either side.
2. Measurement A -
Top to Bottom: Stand at the top of your stairs and extend your
tape measure down the staircase. The tape measure should
lightly touch each stair tread and the tip should touch the
landing at the bottom of the steps. The measurement should be
from the front edge (nose) of the top landing to the floor at
the bottom landing.
Measurement B - Top to First Step: Measure from the front edge
(nose) at the top of the landing to the front edge (nose) of
the first step.
3. Measurement C -
Stair Tread Length: Measure the tread of a stair from front
edge (nose) of a stair to back.
Measurement D - Stair Rise Height: Measure the rise of a stair
by measuring the length from the front edge (nose) of one step
straight down to the next tread.
Number of Risers: Count the number of stair risers on your
staircase.
4. Measurement E -
Top Obstruction Distance: Measure the distance from the front
edge of the top step to any obstruction on the top landing.
Common obstructions include doors, walls or railings.
Measurement F - Bottom Obstruction Distance: Measure the
distance from the front edge of the bottom stair to any
obstruction on the bottom landing.
5. Measurement G -
Stair Width: Measure the width of the stairs from side to
side.
