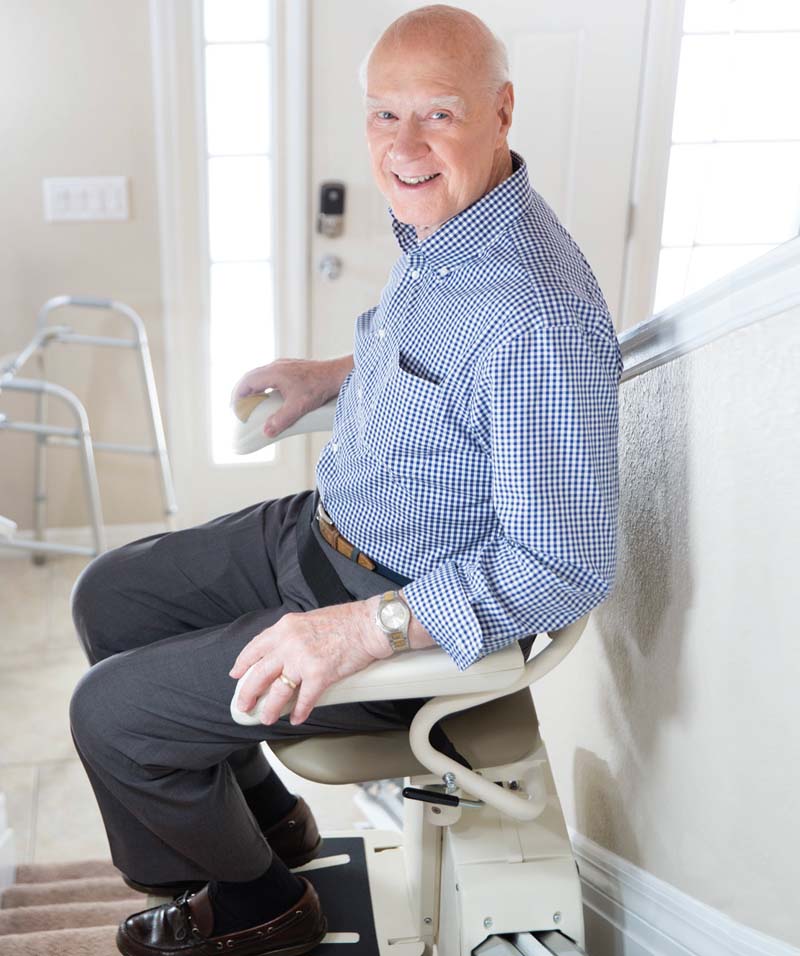

We believe people deserve to have access to every
floor in your home. The Pinnacle SL600 is here to help
you take back your freedom.
The
Pinnacle is clearly one of Americas favorite
stair lifts that only takes up
10.5"
of stairwell space. A
Swivel Seat
at the upper landing makes for easy and safe entries
and exits. The seat itself is upholstered with padding
and a full-sized backrest with a retractable seat belt
for security.
The Pinnacle uses a helical worm gear drive system for
a smooth and quiet ride. A nylon polymer gear rack
means there is no need for grease or lubrication, so
the lift is low maintenance and easy to clean.
Folding Rail Option
eliminates space constraints or limited space issues at
the bottom of any stairway.
With a lifting
capacity of 350 lb, this straight stair lift provides
riders with the confidence to go up and down their stairs
safely and comfortably.
Automotive style buckle
seat belt is included free with every lift.
Two wireless
transmitters are included free with every lift. When you
are at the bottom of the stairway and the lift is at the
top, simply push a button and the lift comes to you.

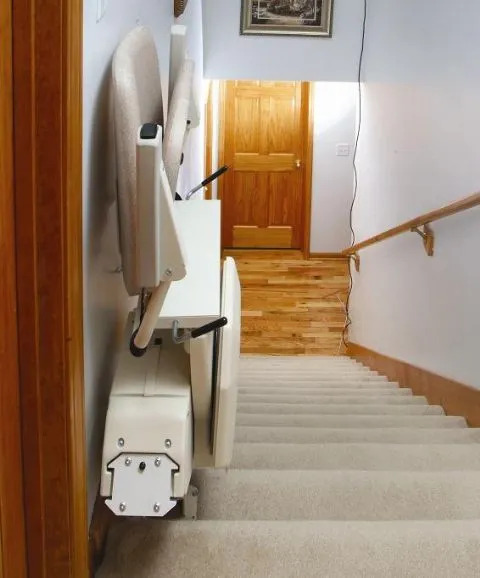

What a space saver. The Pinnacle SL600 is only 10.5”
wide with the seat folded up, the Pinnacle is the
narrowest stairway lift in the industry. You can have
a stairway lift and not lose over half your stairway
to the lift. Despite this compact size the Pinnacle
can accommodate a wide variety of body types.
The
weight capacity is 350 lbs. and the seat width is 19”.
The Helical Worm Gear and reinforced Nylon Polymer
Gear Rack drive system eliminates maintenance and uses
less electricity than other lifts and therefore saves
on your energy bills.
The Pinnacle is
easily one of the safest stairway lifts available as it
utilizes a worm gear. The Pinnacle SL-600 has a long list
of other safety features. Safety is #1 for the engineers
at Harmar and they absolutely proved it with the design of
the Pinnacle. There are safety sensors in the footrest so
that the chassis will stop the lift if it detects an
obstruction. The controls are easy to operate and come
with condition indicator lights.
Installable on
either side of the stairway, the Pinnacle Straight Stair
Lift is available in your choice of a 350 or heavy-duty
600 lb. capacity model. The Pinnacle has the ability to
travel up to 75 feet, with optional track extensions and a
folding rail available. Choose from 4 different upholstery
options to match your decor.

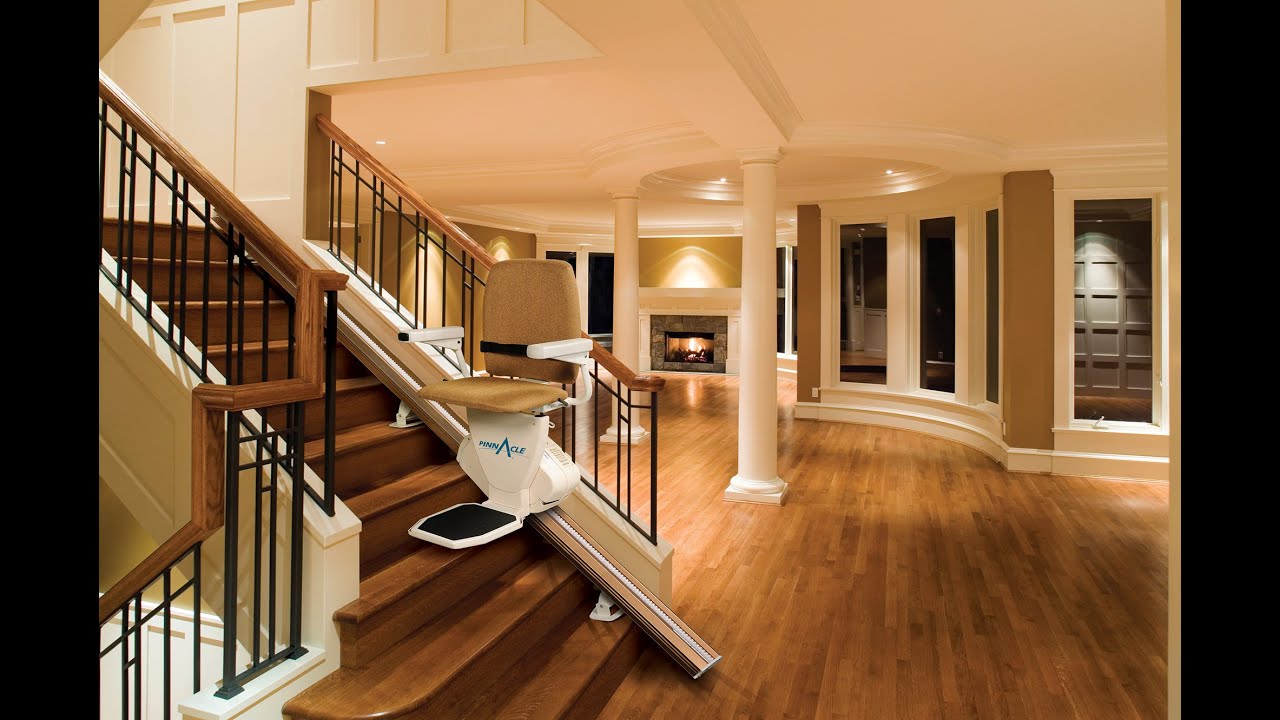

Harmar's Pinnacle Straight Stair Lift provides an
economical, comfortable, safe, and stylish alternative
to getting up and down stairs. This innovative stair
lift folds-in compactly and has a slim track that
leaves plenty of room for everyone to get up and down
the stairs. A wireless remote brings the comfortably
designed and height-adjustable swiveling seat to you.
Narrow stairways? No problem. When folded, the SL600
is just 10.5” wide, which provides plenty of room for
other household members and guests to easily access
the stairs.
Narrowest stair lift at only 10.5”
350 and 600 pound capacity options
Up to 40 cycles even in a power outage
Can be installed on right or left
Patented worm gear drive system
No grease or lubrication needed
Weight capacity: 350 lbs.
Large, easy-to-use
constant pressure rocker controls on the armrest deliver
smooth starts and stops. The controller can be installed
on your choice of the left or right side.
Pinnacle Straight Stair Lifts Provide Peace of Mind By
Assisting you with getting up and down stairs at home
Helping you to regain independence
Providing security each and every time you ride your
Pinnacle Stair Lift
Knowing you don't have to worry about power outages
Giving you the ability to park at a precise spot on the
track
Light and Compact Design
Pinnacle Straight Stair Lifts are the most compact stair
lift on the market. Folding in at just 11 inches off the
wall and with a track that is only 6 1/2 inches wide,
there is plenty of room for everyone to use the stairs.
Weighing in at only 180 lbs., including the track, the
entire Pinnacle system is also the lightest stairway lift
on the market.
Elegant Design
The Pinnacle's stylish design features elegant, clean
lines and neutral base tones that augment one of your 4
attractive upholstery options. Choose from Almond,
Bluebell, Alpine Green, and Ruby Red upholstery colors to
match your decor.
Large, Easy-to-Use Constant Pressure Rocker Controls on
the Armrest

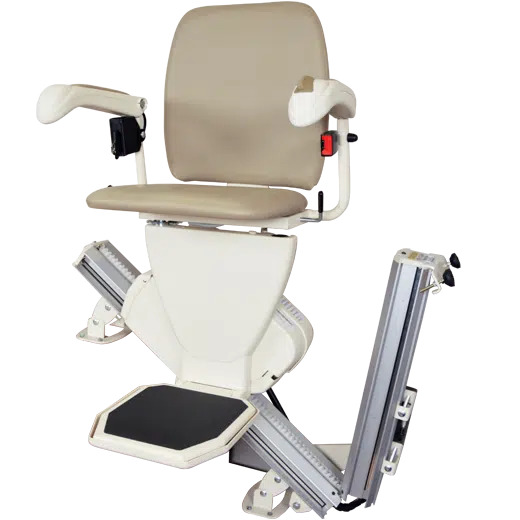

Space-Saving Folding Rail
An industry first automatic folding design eliminates
obstructions at the bottom of the stairway.
Sturdy Capacity
Choose from a sturdy and secure 350 lb. or 600 lb.
capacity Pinnacle Stair Lift.
Provides Comfort

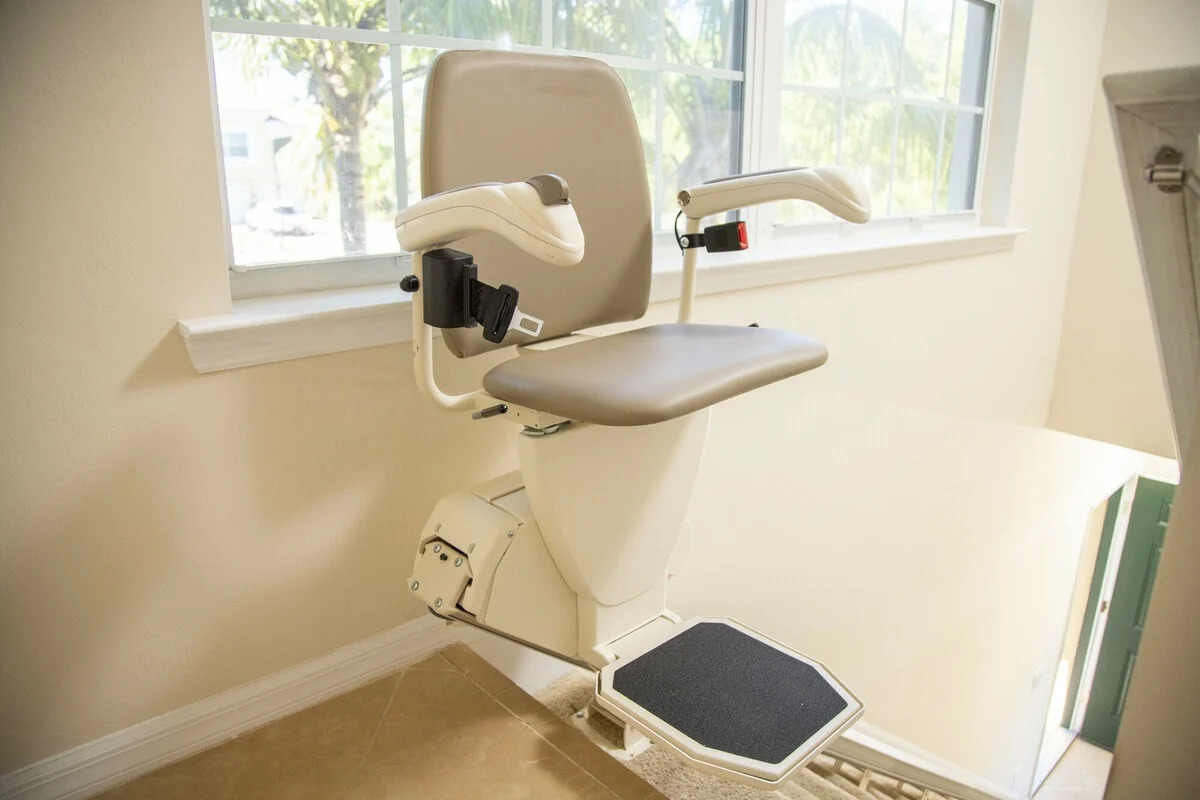

A wide, comfortable seat swivels at the top landing to
help with getting on and off the lift. The footrest hugs
the floor, and the seat height adjusts to provide a higher
degree of comfort.
Provides a Smooth Ride
A toggle switch is located on the side of the chair for
controlling the transport up and down the stairway. A
patented helical worm gear drive system ensures an
extremely smooth ride.
Convenience & Longevity
For added convenience, wireless remote call/send controls
allow you to call or send the lift to either landing.
Provides Safety
Three sets of safety sensors prevent the lift from running
if the seat is not in the proper position or if something
is blocking the stairway or track. The sensors are located
on each side of the chair and one on the base. If any of
the stair lift's edges, located on the carriage top and
bottom, as well as the front, back, and underside of the
footrest, obstruct the lift, it will immediately halt and
the armrest LED indicator light will turn orange. These
sensors prevent the chair from moving. The obstacle can
then be removed, and the Pinnacle will resume operation.
An interlock on the swivel seat prevents the lift from
being operated unless the seat is in its normal, locked
position. The remote controls are then disabled for a 15
second period after the armrest control is used.
Easily Charges
Most battery-powered stair lifts only charge if they are
precisely positioned on the charger pins, often resulting
in a dead, uncharged lift. Running of standard household
currents, the Pinnacle's batteries are charged anywhere
within the top or bottom 3 feet of the track.
Operates During Power Outages
One of the main benefits of Pinnacle Straight Stair Lifts
is the added number of trips provided during power
outages. Other lifts only give 10 or 15 trips on one
battery charge, but with the Pinnacle, you will get
approximately 40 trips off of the charged battery.
Featuring a patented and revolutionary drive system, the
Pinnacle is so efficient, it uses less power. This
translates into more trips on one charge.
Easy Installation and Maintenance
Pinnacle Straight Stair Lifts can be easily installed by
one person on your choice of the right or left side of the
stairs. The Pinnacle is the only stair lift in the
industry made of poly-core plastic, which does not require
maintenance or lubrication. This means that there is no
grease needed, so if children or animals come in contact
with the track, they're not going to get messy.

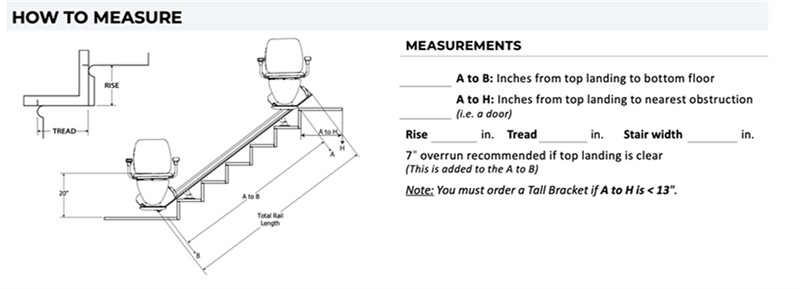

1.
Mount Side: From the bottom of your staircase looking
up, determine on which side you want the lift installed.
Because the lift mounts to the stairs and not the wall,
you may choose either side.
2.

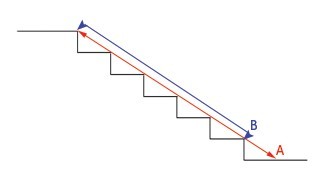

Measurement A - Top to Bottom: Stand at the top of your
stairs and extend your tape measure down the staircase.
The tape measure should lightly touch each stair tread
and the tip should touch the landing at the bottom of
the steps. The measurement should be from the front edge
(nose) of the top landing to the floor at the bottom
landing.
Measurement B - Top to First Step: Measure from the
front edge (nose) at the top of the landing to the front
edge (nose) of the first step.
3.
Measurement C - Stair Tread Length: Measure the tread of
a stair from front edge (nose) of a stair to back.
Measurement D - Stair Rise Height: Measure the rise of a
stair by measuring the length from the front edge (nose)
of one step straight down to the next tread.
Number of Risers: Count the number of stair risers on
your staircase.
4.
Measurement E - Top Obstruction Distance: Measure the
distance from the front edge of the top step to any
obstruction on the top landing. Common obstructions
include doors, walls or railings.
Measurement F - Bottom Obstruction Distance: Measure the
distance from the front edge of the bottom stair to any
obstruction on the bottom landing.
5.
Measurement G - Stair Width: Measure the width of the
stairs from side to side.
Measurement C - Stair Tread Length: Measure the tread of
a stair from front edge (nose) of a stair to back.
Measurement D - Stair Rise Height: Measure the rise of a
stair by measuring the length from the front edge (nose)
of one step straight down to the next tread.
Number of Risers: Count the number of stair risers on
your staircase.
Measurement C - Stair Tread Length: Measure the tread of
a stair from front edge (nose) of a stair to back.
Measurement D - Stair Rise Height: Measure the rise of a
stair by measuring the length from the front edge (nose)
of one step straight down to the next tread.
Number of Risers: Count the number of stair risers on
your staircase.
