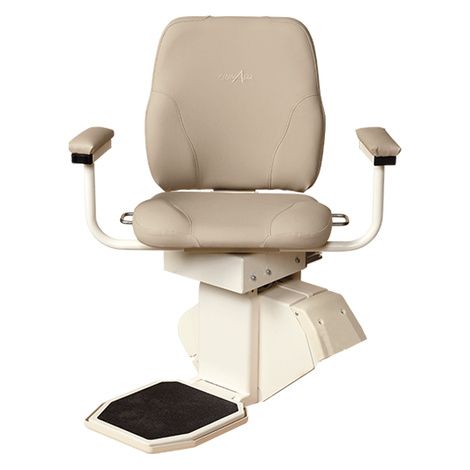

Going up? The Harmar Pinnacle Heavy-duty (600 Lb capacity)
SL600HD Stairlift is designed to help you access every
floor in your home with ease. Boasting an impressive
600-pound lifting capacity, this stairlift ensures a
secure and comfortable ride between floors.
Automotive quality seat belt. Anyone using the Harmat
Pinnacle SL-600-HD stairway lift is safe and secure.
Even in a complete power outage the _pinnacle
SL-600-HD will continue to operate.
It's
almost entirely maintenance free. It requires no
grease ever or lubrication. This means a cleaner
environment for you, your home, and your pets. The
efficient motor, equipped with a nylon polymer
gear/worm drive.

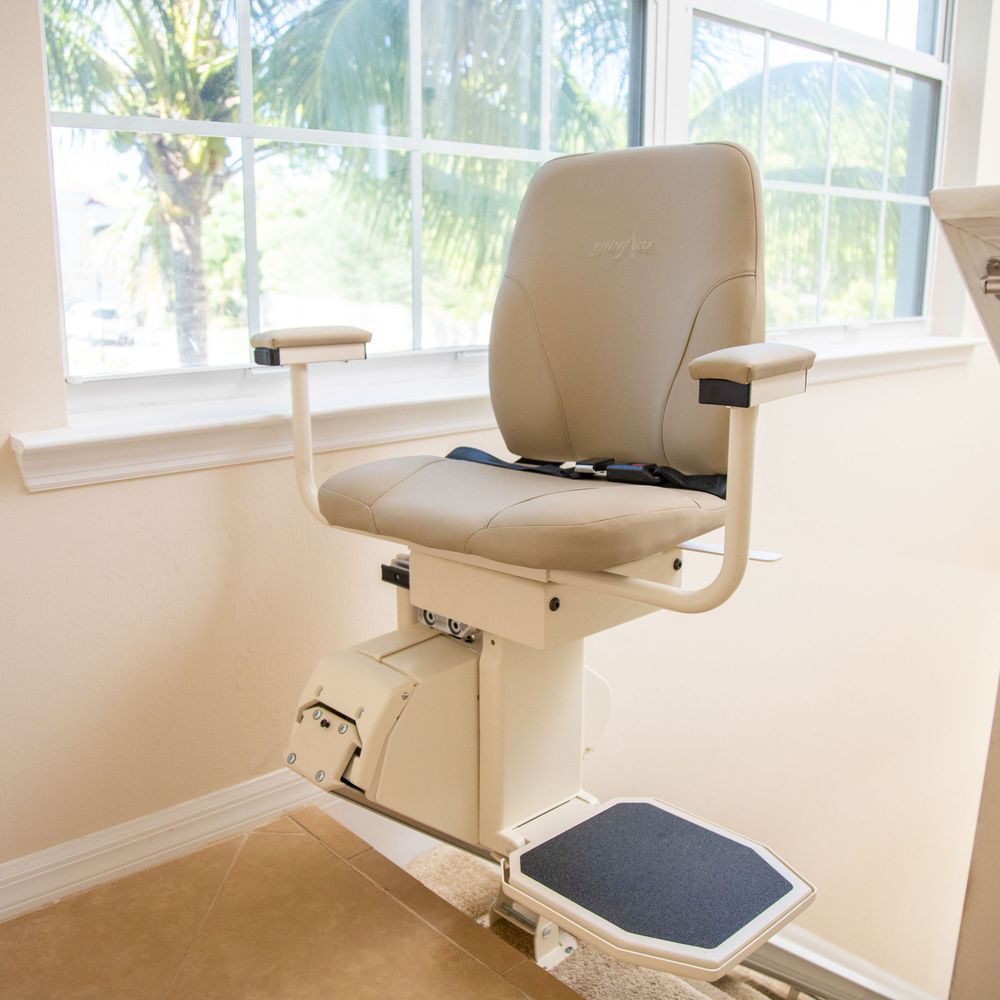

The
high-backed, extra-wide chair, stationary armrests,
and reinforced footrest deliver superior stability for
both rides and transfers. For added safety, the
retractable seat belt keeps you secure during your
journey.
With
the ability to swivel 85° at the upper landing,
dismounting or transferring is hassle-free. The
standard track length starts at 15.5 feet. Extended
lengths are available up to 40 feet.
Wireless transmitters make life much easier. If
the lift is down at the bottom of the steps and
you are at the top of the steps, just press the button
and the lift comes to you.
•Foldable foot plate
•Up to 600 lbs weight capacity
•Comfortable seating
•Seat swivels 85°
•Speed of up to 14 FPM
•Up to 40' in track length
Swevel seat locks in place and is very strong allowing
a user to place their entire weight on the seat or a
large portion of their weight directly on the arm
rest.
When positioning yourself on the seat at the upper
landing, ensure the seat is fully swiveled and locked
in position for safety. The seat may be swiveled by
depressing the swivel release handle on either side of
the seat.
Comes free with two
wireless transmitters. Press and hold the appropriate
directional button on the front of the hand control. The
LED indicator light will turn green when a signal is being
sent.
The Pinnacle SL600-HD chair lift will operate with or
without a rider. All safety sensors on the chair lift are
designed to continue to operate in their normal mode. The
LED light indicator on the armrest will also display the
appropriate color.
Weight Capacity
600 lb
Incline Limits
27° - 48° (inclines above 45° may require local
jurisdiction approval)
To turn the stair lift on, press the red switch located on
the top of the carriage to the position (I) and ensure
that the key switch (if equipped). When the lift is turned
a green light on the armrest will indicate that the lift
is ready for use.
Ensure that you are securely seated before operating the
lift. To operate the lift, continuously press the hand
control switch on the side in which you wish to travel.
If you release the control switch the lift will stop.
Continue to press the switch or button all the way to the
landing. The lift will gently stop at the appropriate,
preset point.
To safely exit the lift, support yourself by the armrests,
rise and step off the footrest. At the upper landing,
ensure that the seat is fully swiveled and locked before
rising. If you do not intend to use the lift again
immediately the seat and footrests may be folded up to
minimize obstruction to people walking on the stairs.
To operate the lift remotely, continuously press the
appropriate up or down button on the call/send hand
control unit. These hand control units are usually
attached to a wall at the upper and lower landings of the
staircase. Like all infrared devices, the signal may be
interrupted if the hand control unit is not in the line of
site of the stair lift. If this happens the lift may
temporarily stop but restart immediately, as long as the
hand remote is pressed continuously.
Helical Worm Gear for
smooth ride
Nylon Polymer Gear Rack for a greater stability
Folding Rail Design
Efficient motor for extended performance during power loss
Harmar Pinnacle Heavy Duty Stair Lift Features
Industry-best 600 lbs capacity
Seat swivels 85° at both the upper and lower landing for
easy dismount or transfer
Up to 40' of travel
Patented helical worm gear drive system for extremely
smooth and quiet ride
Low Maintenance
Operating control in the armrest
Comfortable, plush upholstered seat
Safety sensors in the footrest and chassis will stop the
lift if it meets an onstruction
Options/Accessories: Key lock to protect against
unauthorized use
How To Determine Pinnacle Heavy Duty Stair Lift Rail
Length?
Determine obstructions that will affect the position and
length of the rail, such as walls, doors, hallway
orientation, etc.
Measure the overall length of the stairs from the nose at
the top landing to the floor (nose to floor measurement),
e.g., 128".
For a normal stairway with adequate landing space, add 7"
to the nose to floor measurement. This will provide enough
rail length to allow the stair lift to be adjusted so that
the floor-to-seat height will be the same at both the top
and bottom.
If the top landing has restrictions (i.e., a wall or
doorway), use the chart below to determine the length of
extension needed.
To cut the rail, use a standard 12" chop saw, with a blade
designed to cut aluminum.
Remote Control Operation
The key switch on the arm of the chair must be in the
position to use the remote call/send control.
There are sensitive edges on the top and bottom of the
carriage, and the front, back and underside of the
footrest. If any of these edges touches an obstruction the
lift will halt immediately and the armrest LED indicator
light will turn orange. The lift may only be driven away
from the obstruction.
An interlock on the swivel seat prevents the lift from
being operated unless the seat is in its normal, locked
position. The safety brake is always engaged.
Harmar Pinnacle SL-600-HD Heavy Duty Stairway Lift
Mount Side:
From the bottom of your staircase looking up, determine on
which side you want the lift installed. Because the lift
mounts to the stairs and not the wall, you may choose either
side.
2.
Measurement A - Top to Bottom: Stand at the top of your stairs
and extend your tape measure down the staircase. The tape
measure should lightly touch each stair tread and the tip
should touch the landing at the bottom of the steps. The
measurement should be from the front edge (nose) of the top
landing to the floor at the bottom landing.
Measurement B - Top to First Step: Measure from the front edge
(nose) at the top of the landing to the front edge (nose) of
the first step.
3.
Measurement C - Stair Tread Length: Measure the tread of a
stair from front edge (nose) of a stair to back.
Measurement D - Stair Rise Height: Measure the rise of a stair
by measuring the length from the front edge (nose) of one step
straight down to the next tread.
Number of Risers: Count the number of stair risers on your
staircase.
4.
Measurement E - Top Obstruction Distance: Measure the distance
from the front edge of the top step to any obstruction on the
top landing. Common obstructions include doors, walls or
railings.
Measurement F - Bottom Obstruction Distance: Measure the
distance from the front edge of the bottom stair to any
obstruction on the bottom landing.
5.
Measurement G - Stair Width: Measure the width of the stairs
from side to side.
