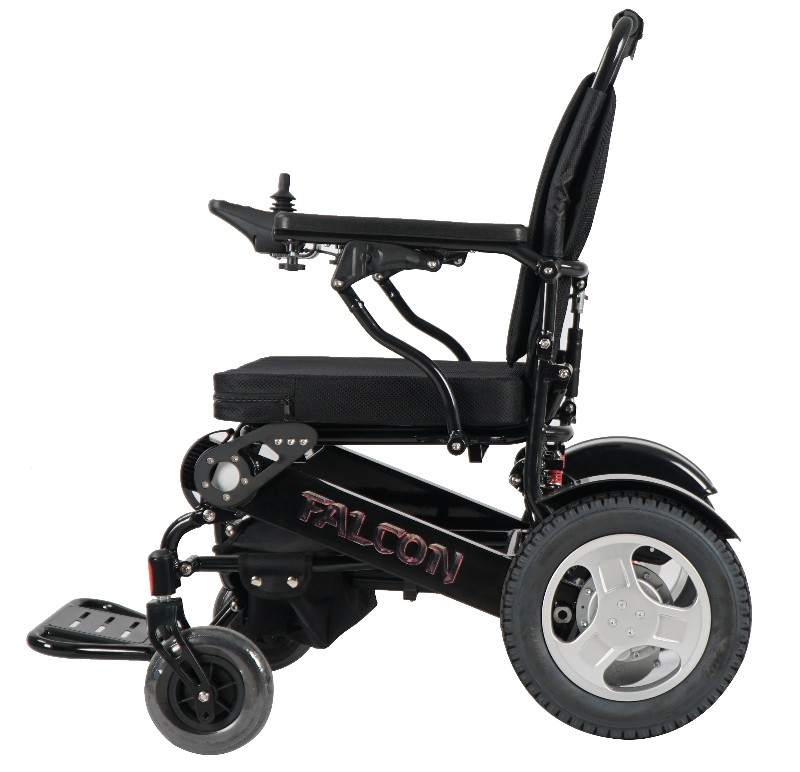

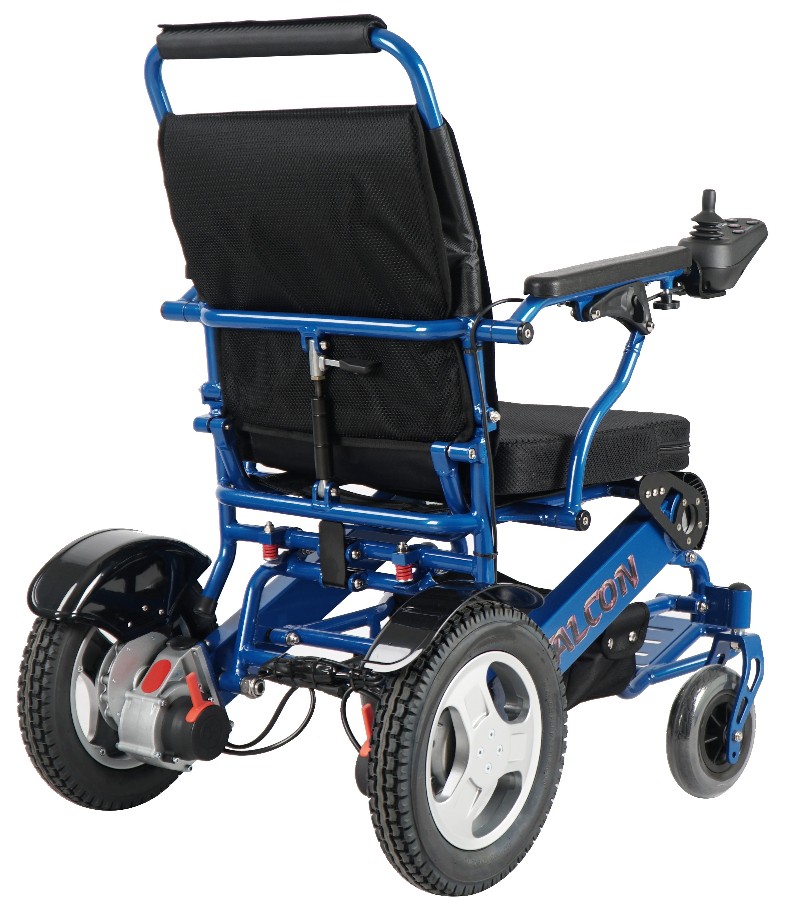

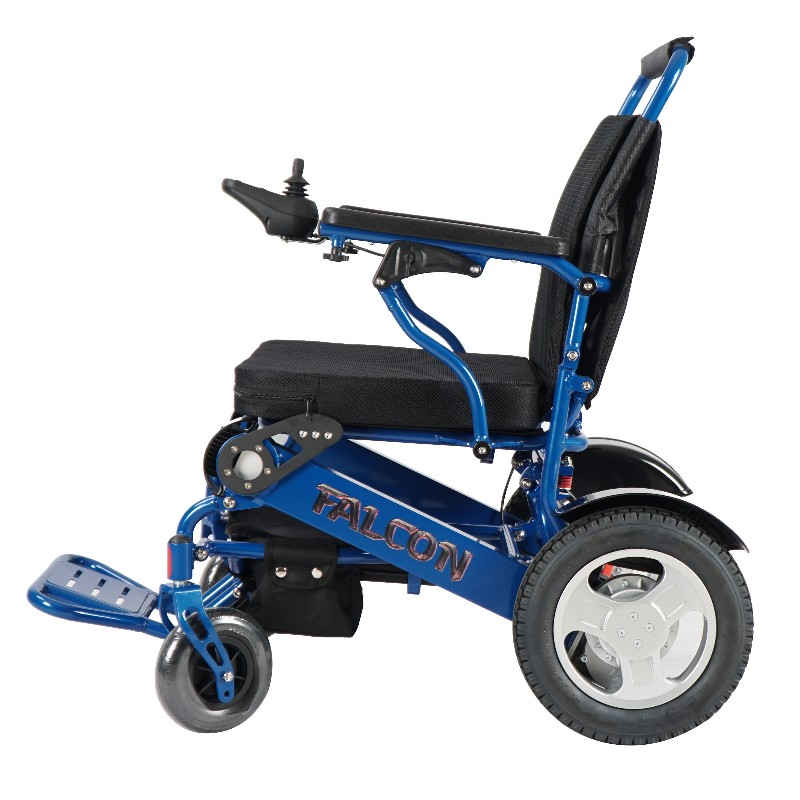

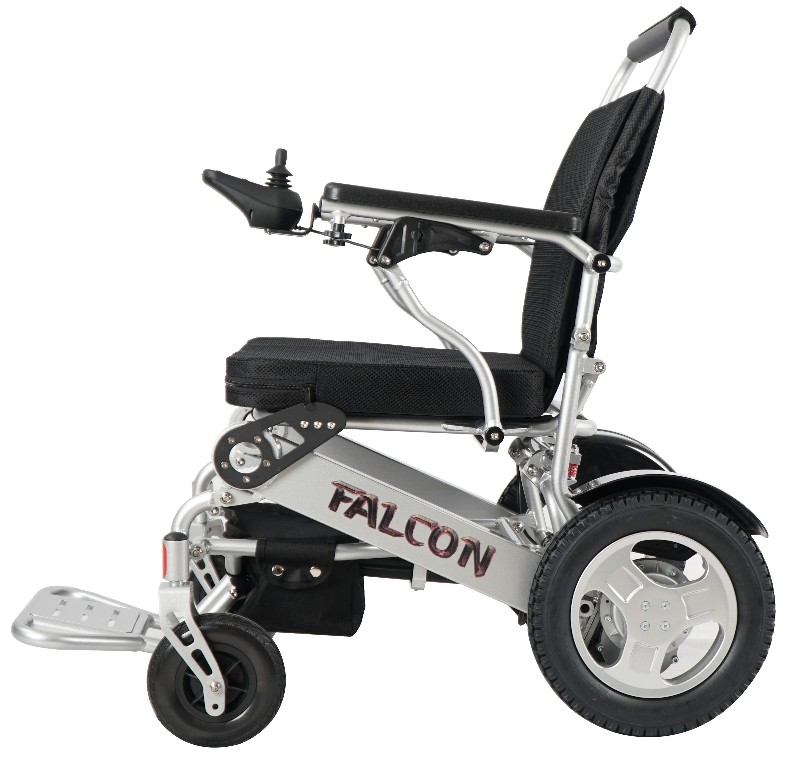

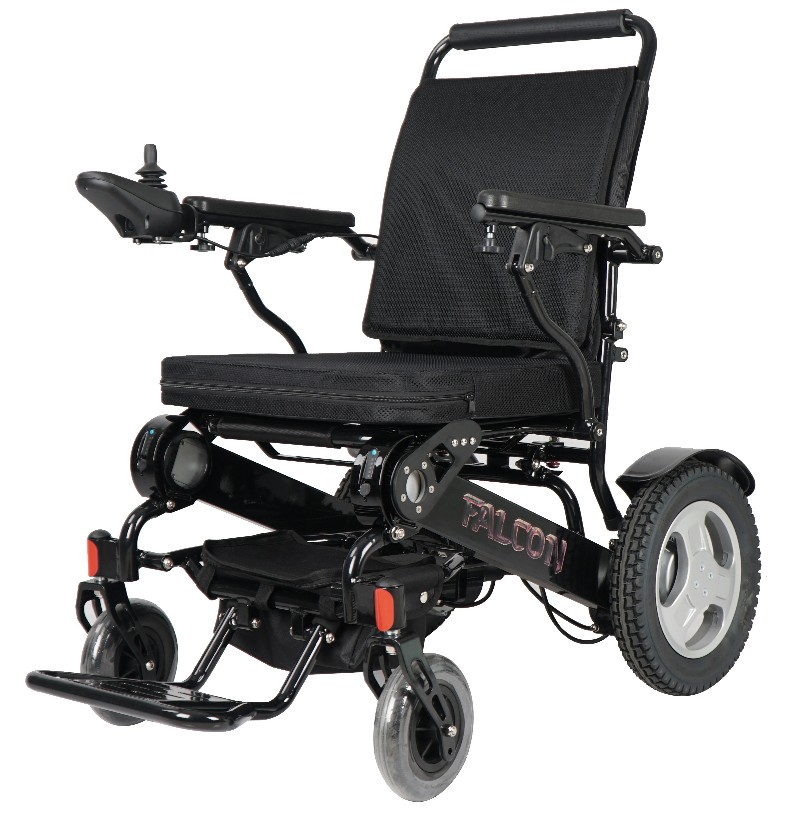

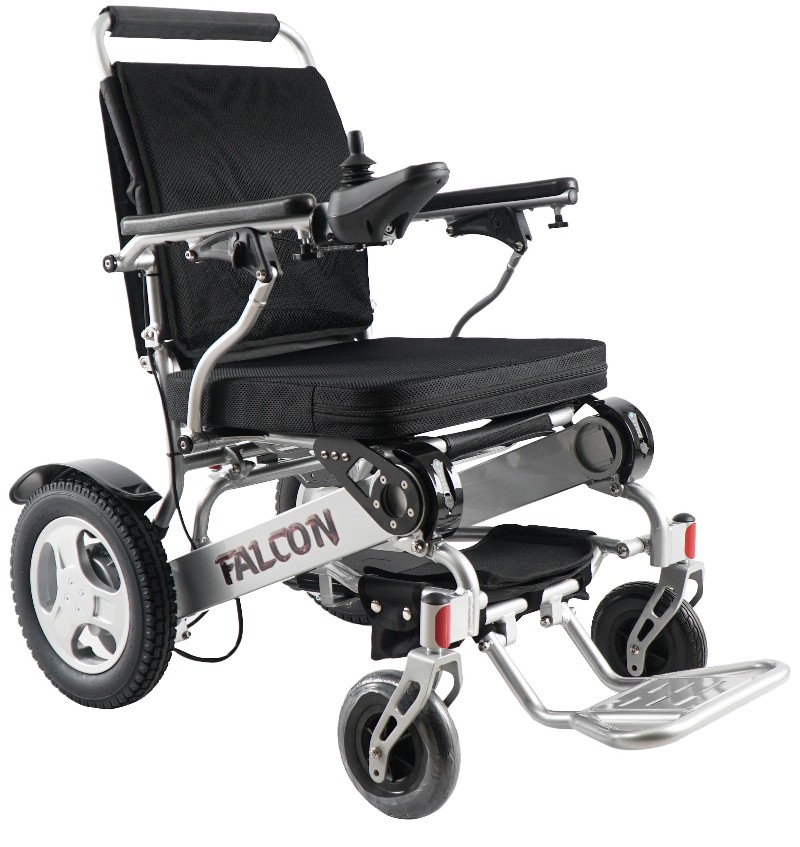

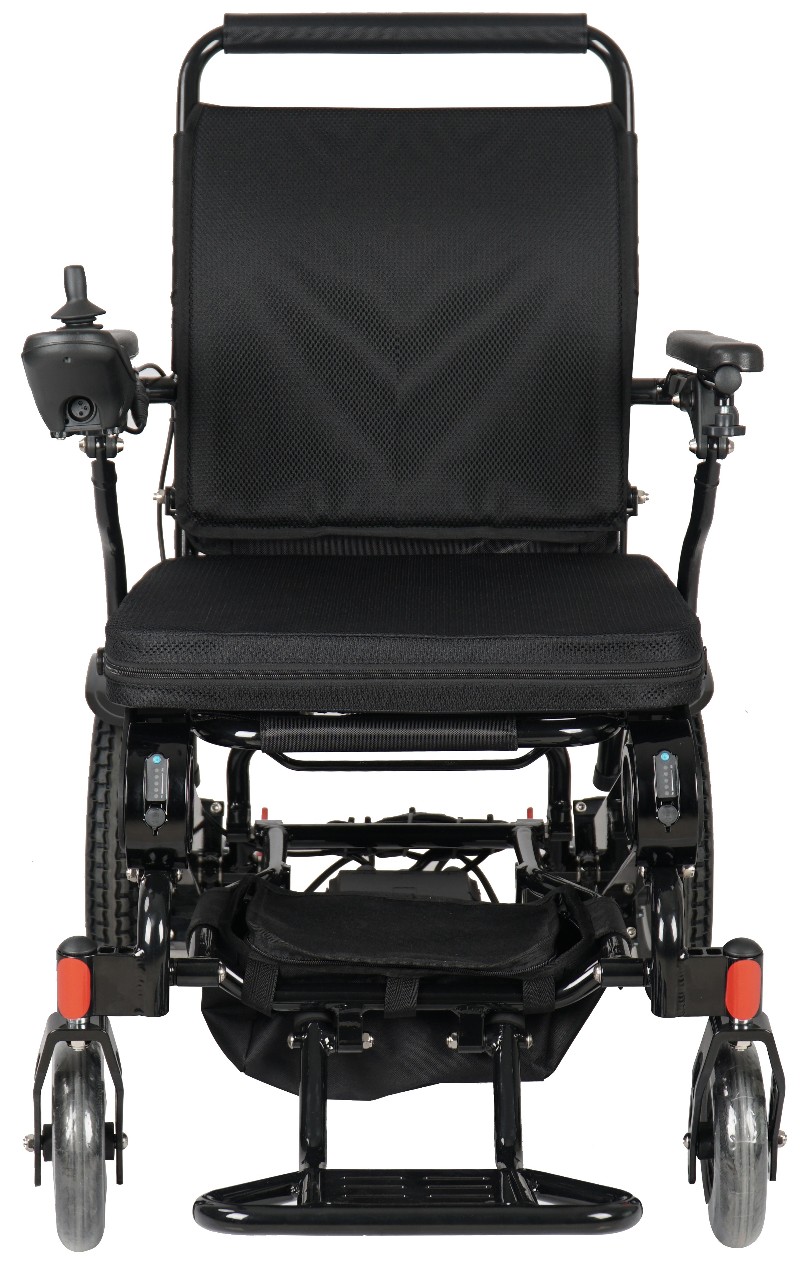

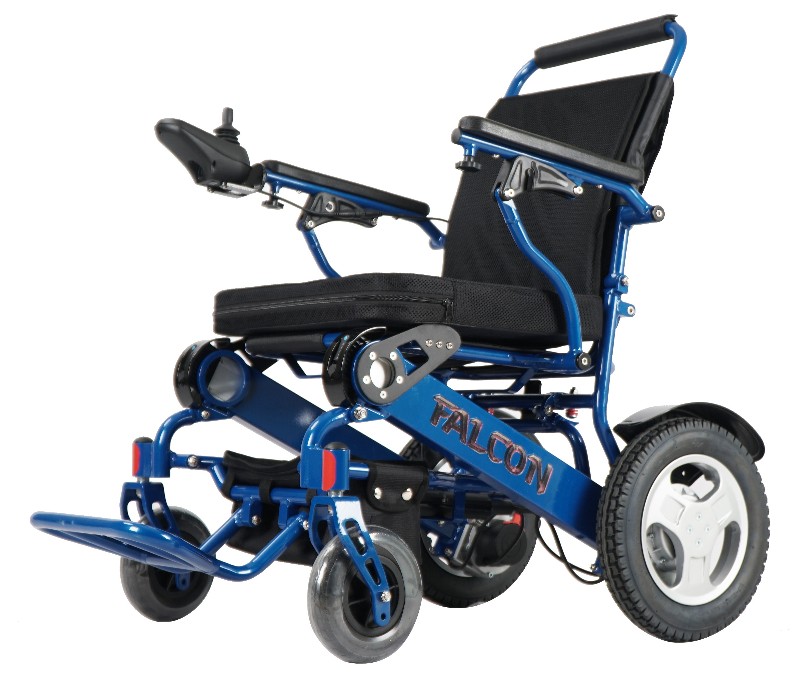

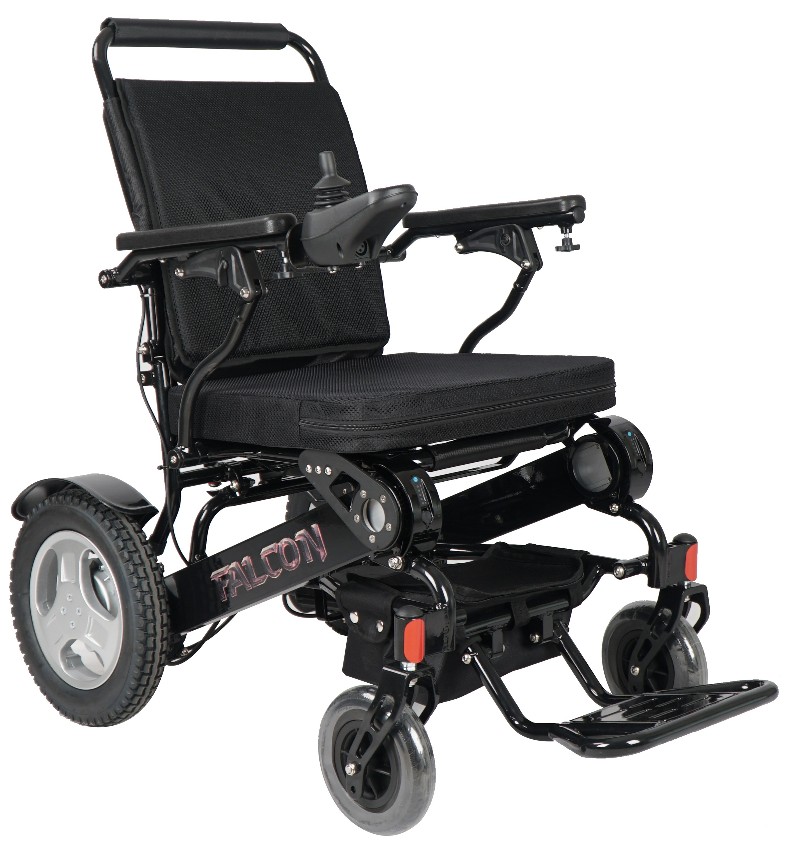

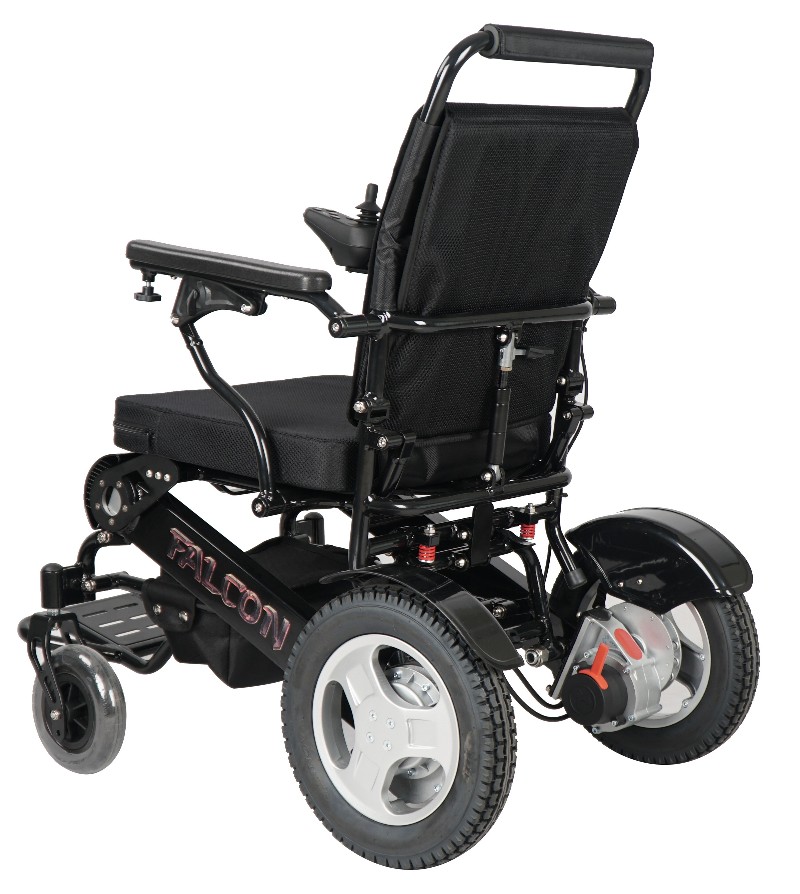

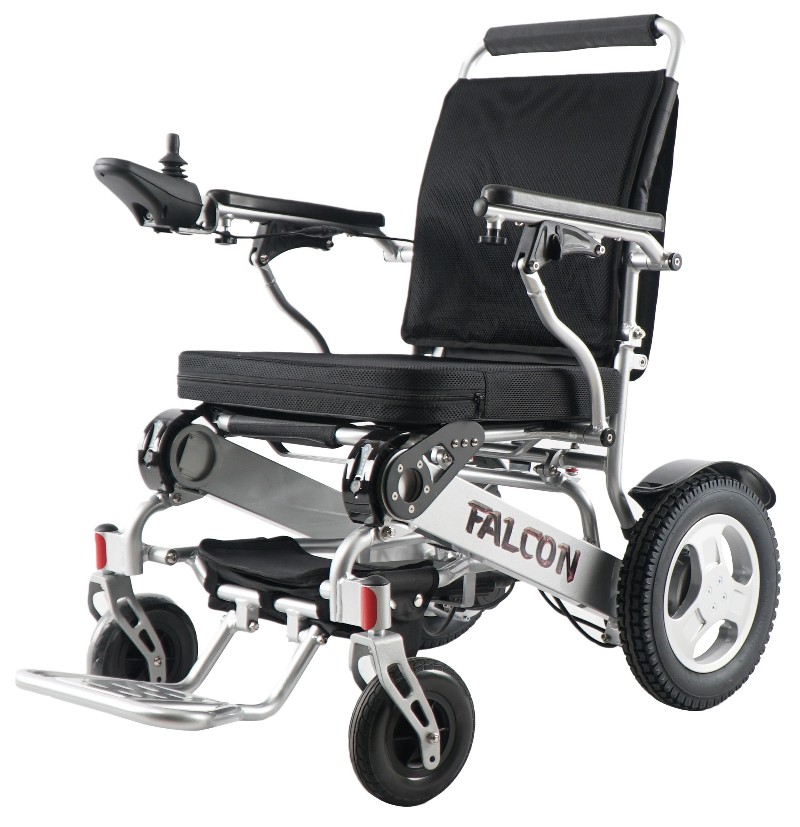

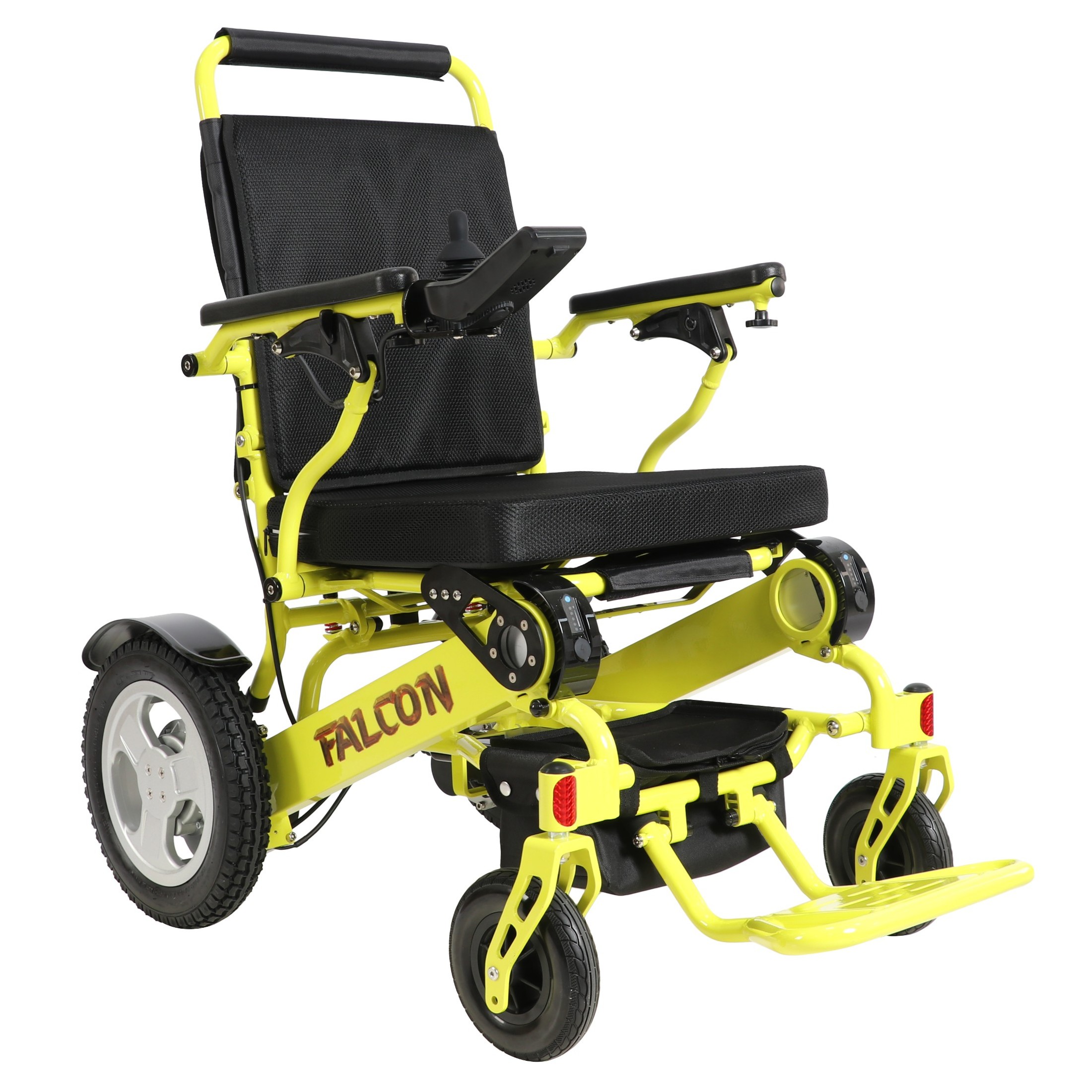

The
Falcon heavy duty foldable portable power wheelchair
with a virtual position reclining back rest and a
weight capacity of 400 lbs. The Falcon is the worlds
lightest foldable power wheelchair with a reclining
backrest weighing only 50 lbs.
|
|
|
|
( Click Any
Image To Enlarge ) |
|
|
The
Award Winning Falcon Is One Of Americas Favorite Power
Wheelchairs Due To Its Ability To Easily Fold With
Almost No Effort Into A Small Compact Compartment And
It Features A Virtual Reclining Back Rest.
Ships Fully
Assembled.!
No Tax & No
Shipping.!
Two Year
Warranty.!
|
 |
|
 |

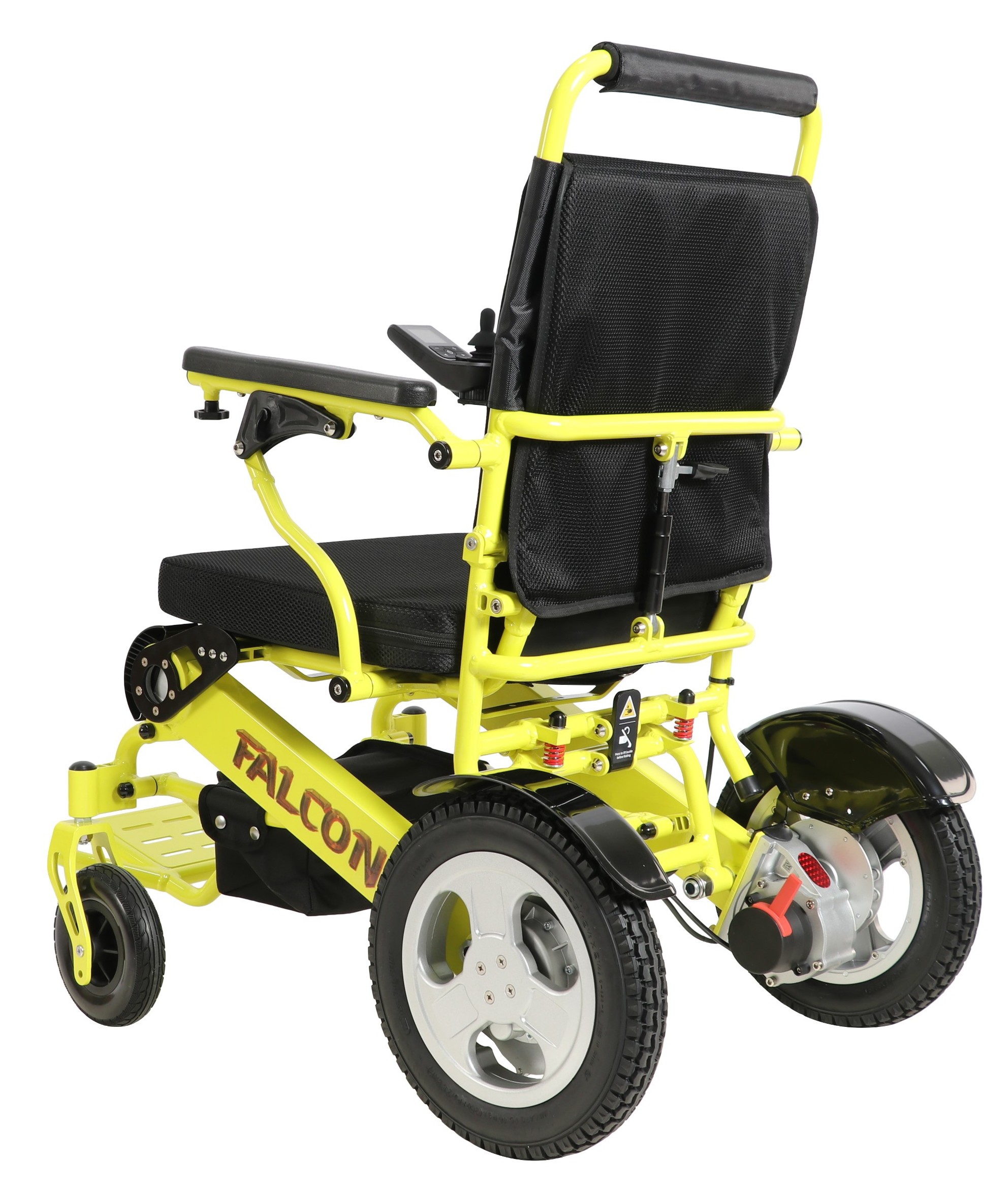

The
Falcon Is Equipped With A Unique Infinitely Adjustable
Reclining Back Rest That Allows A User To Virtually
Position Its Angle In Any Position From Fully Upright
To Its Furthest Recline Position. |
|
The
Falcon Is Also Equipped Standard With A Extra Battery
For Added Range And A Piece Of Mind And Is Made Of A
High Strength Aircraft Quality Aluminum Alloy Frame
Proving The User With That Added Piece Of Mind. |
 |
 |
| |

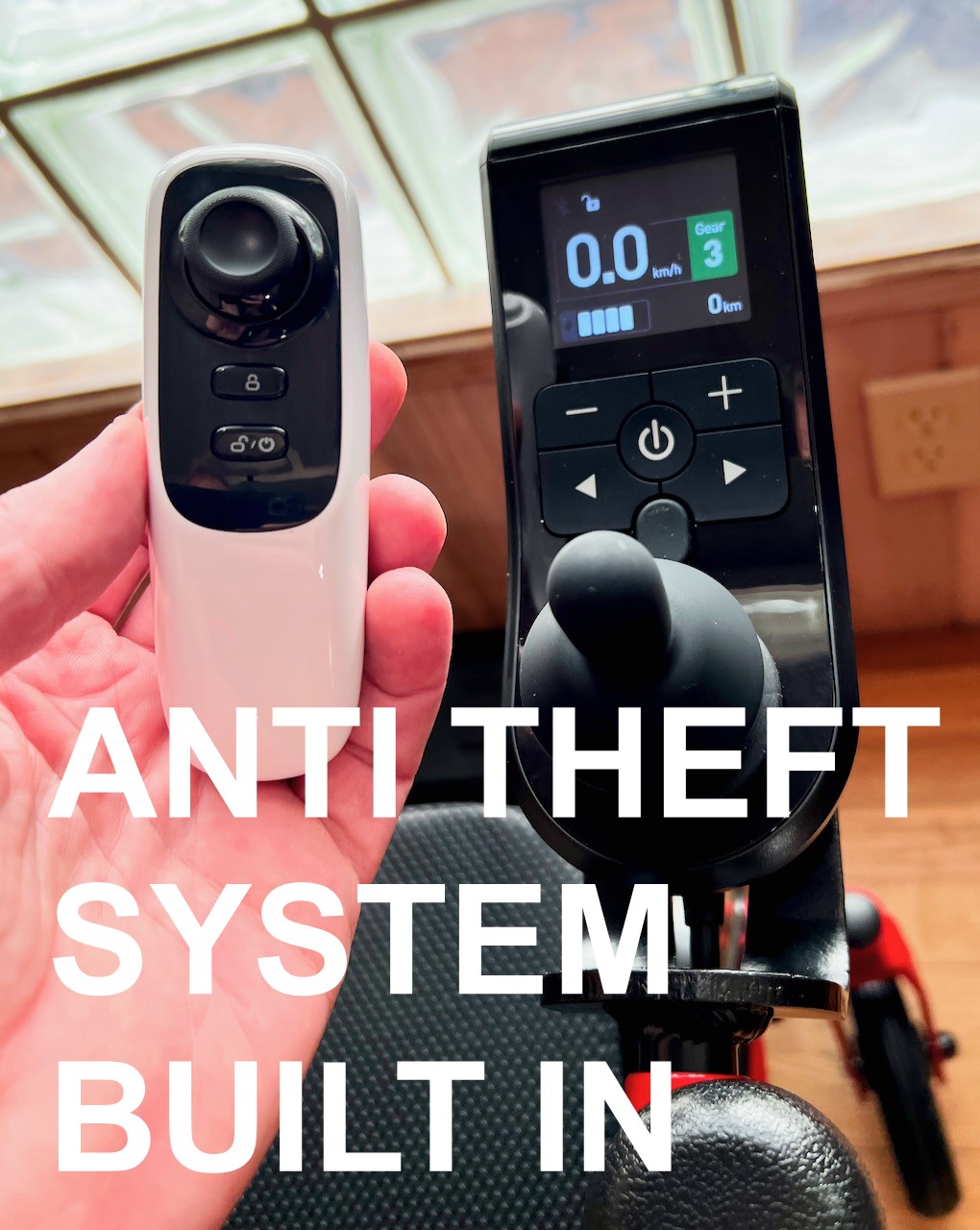

Built In
Anti-Theft Systems allows a user to lock out and
disable the joystick controller using the wireless
remote making it impossible
for someone to simply drive off with the Eagle HD. |
| |
|
|
|
 |
 |
| ......... |

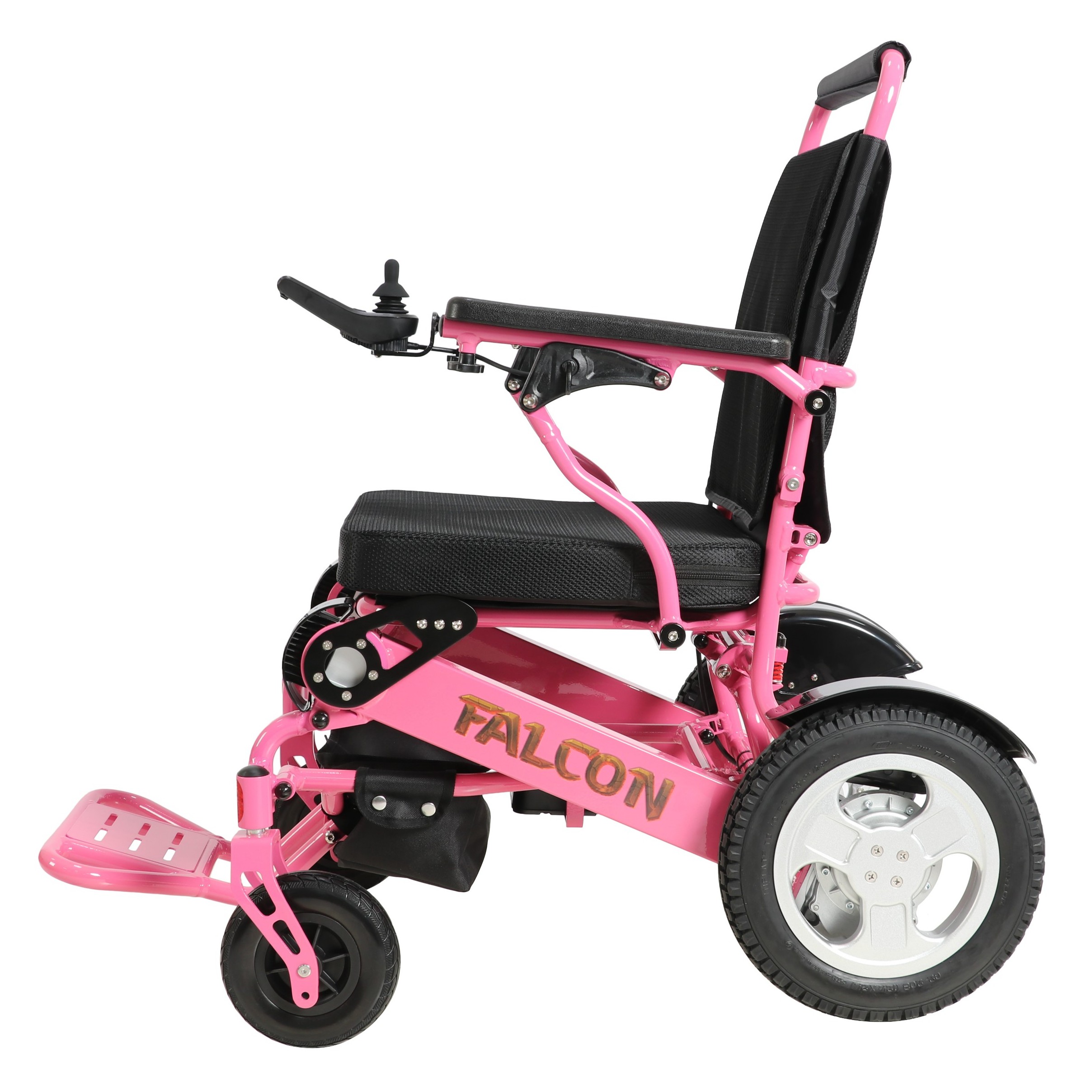

The
Falcon Is Made Of A High Strength Aircraft Quality
Aluminum Alloy That Provides High Strength Yet Is
Extremely Light Weight Allowing The Falcon to Provide
A Weight Capacity Of 400 Lbs While Only Weighing 50
Lbs. |
| |
|
|
|
 |
 |
 |
 |
 |
|
|
( Click
Any Image To Enlarge ) |
|
|
|
 |
|
Not
only is the Falcon extremely light and easy to
manage, it is perfect for air travel, trains, busses
and cruise ships or any trips that are long-distance
it’s also travel approved! The Falcon comes with TWO
(one is FREE) Airline Compliant Non-Spillable
Lithium-Ion Batteries. You can take your Falcon on
airplanes, cruise ships, trains, public transportation
and in taxi cabs (or with Uber or Lyft). |
|
|
|
|
|

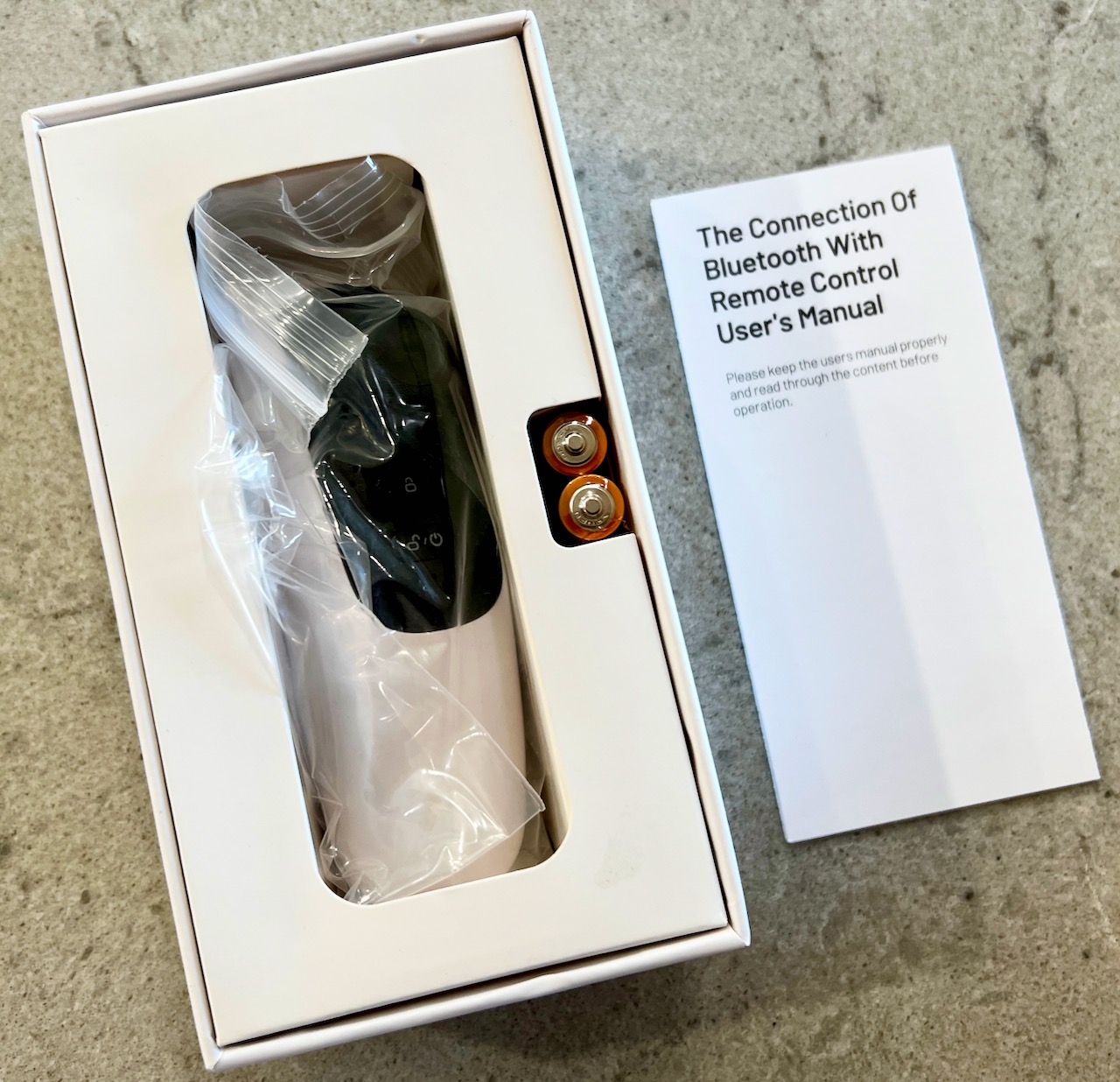

The wireless blue tooth remote allows you to
remotely control your Falcon. This is highly
useful for a care givers that would prefer to
control the Falcon rather then the person in the
wheelchair, or a individual that gets out of the
Falcon and directly into bed and wish to park
their Falcon against a wall for the night. |
|
| |
|
|
 |
|
 |
The wireless remote controller give you complete
control over your Falcon including three different
speed settings, the ability to control your Falcon
over 100 Ft Way, turn the Falcon on or off, and most
importantly set the built in Anti Theft system on and
off. |
|
The all new digital display joystick controller
has a speedometer, battery life indicator, range
indicator, anti theft display and three several
different speed settings. |
|
| |
|
|
 |
 |
| |
The
Falcon Only Weighs 50 lbs And Can Easily Carry Up To
400 lbs. |
| |
Large Dual Posy-Traction Rear Drive Wheels That
Provide Lots Of Traction Even In Grass, Dirt & Gravel.
Heavy Duty Front Casters And Front Forks That Can
Easily Handel A Weight Capacity Of 400 Lbs As Well As
Tolerate High Impact From Rough Terrain. |
|
|
Large 12 inch
rear tires provide a smooth ride with lots of traction
allowing users to travel through most any terrain. The
Falcon is powered by two 250 watt motors providing
lots of torque & power even when going up hills and
inclines. The Falcon also comes standard with two
battery packs giving users that added range to go long
distances without the concern of a dead battery. |
|
| |
|
|
 |
|
|
|
|
|
|
( Click Any
Image To Enlarge ) |
|
|
|
|
There are many details
that make the Falcon Power Wheelchair a smart choice. Another
feature is the MEMORY FOAM Seat Cushion. Not only is it
comfortable, the breathable mesh fabric that covers the
memory foam is easily removed and washable for lasting
freshness! |
|
| |
|
|
 |
|
 |
REMOVABLE ELEVATING
LEG REST
Optional
Removable Elevating Swing Away Height Adjustable Leg Rest
Allow A User To Elevate One Or Both Of Their Legs. In
Addition They Are Easy To Remove, Allowing Them To Be
Completely Out Of The Way When A User Is Getting In Or Out
Of The Falcon. Lastly The Elevating Swing Away Height
Adjustable Leg Rest Are Height Adjustable Making It Even
More Comfortable To Each And Every Individual. |
|
|
|
|
|
 |

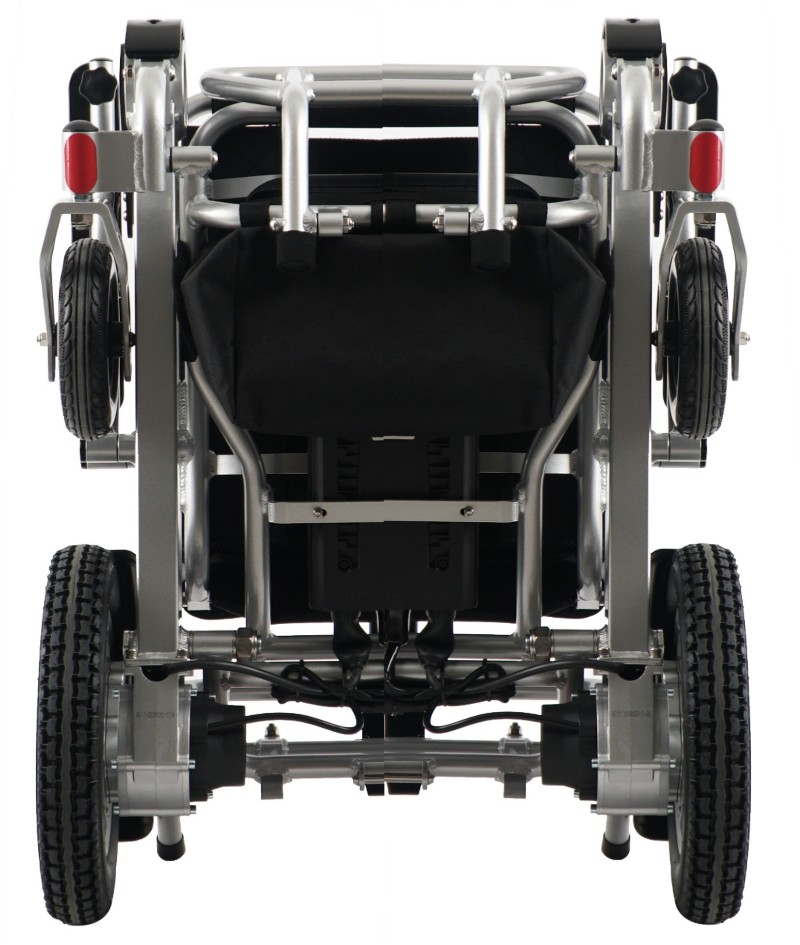

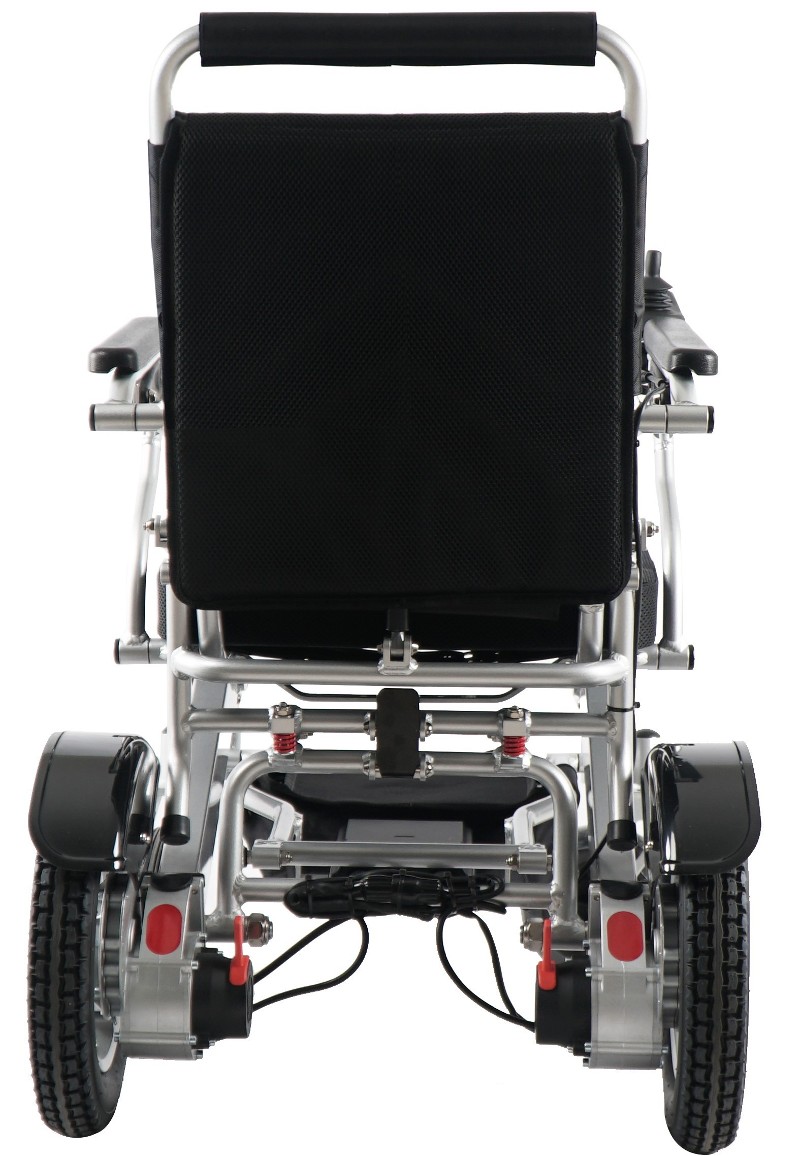

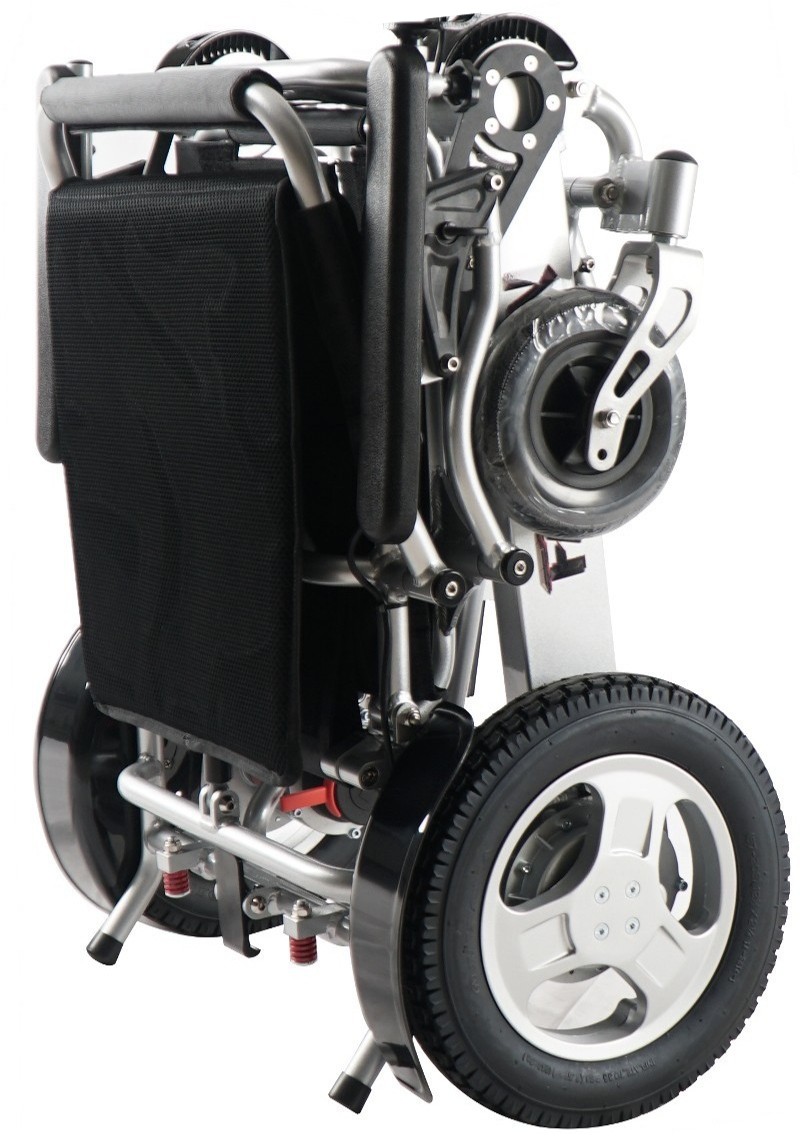

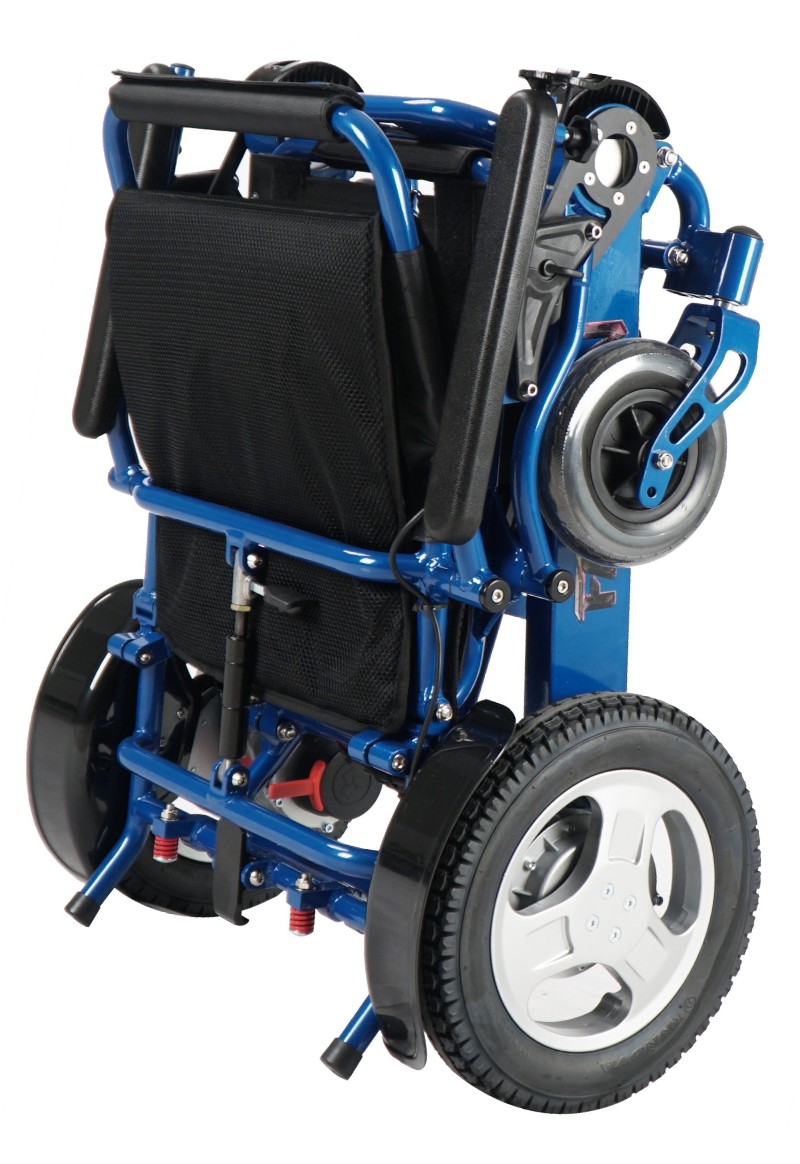

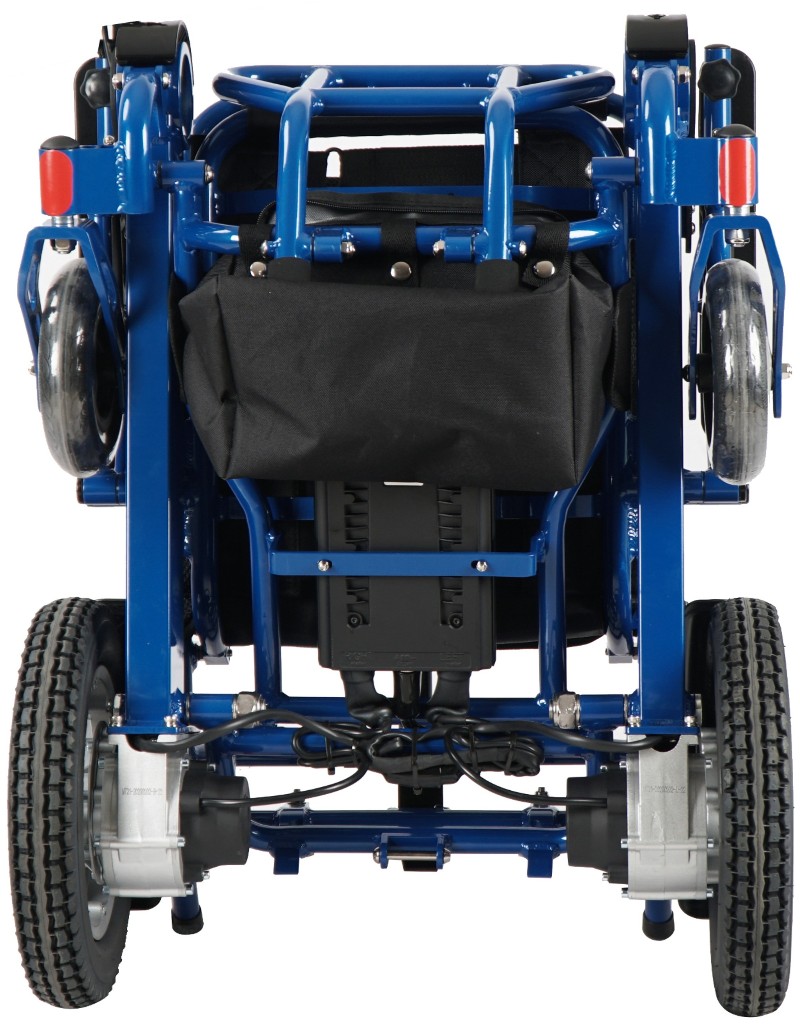

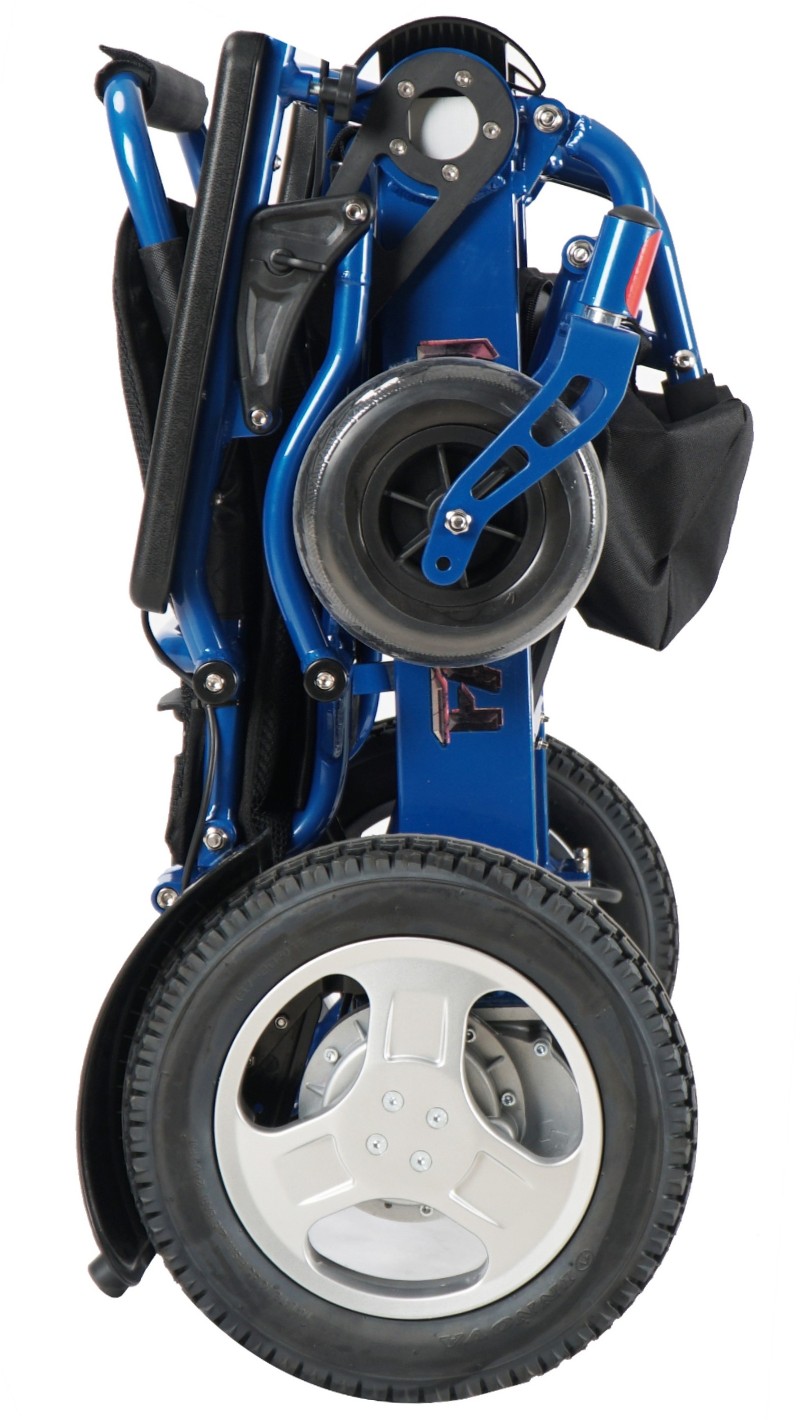

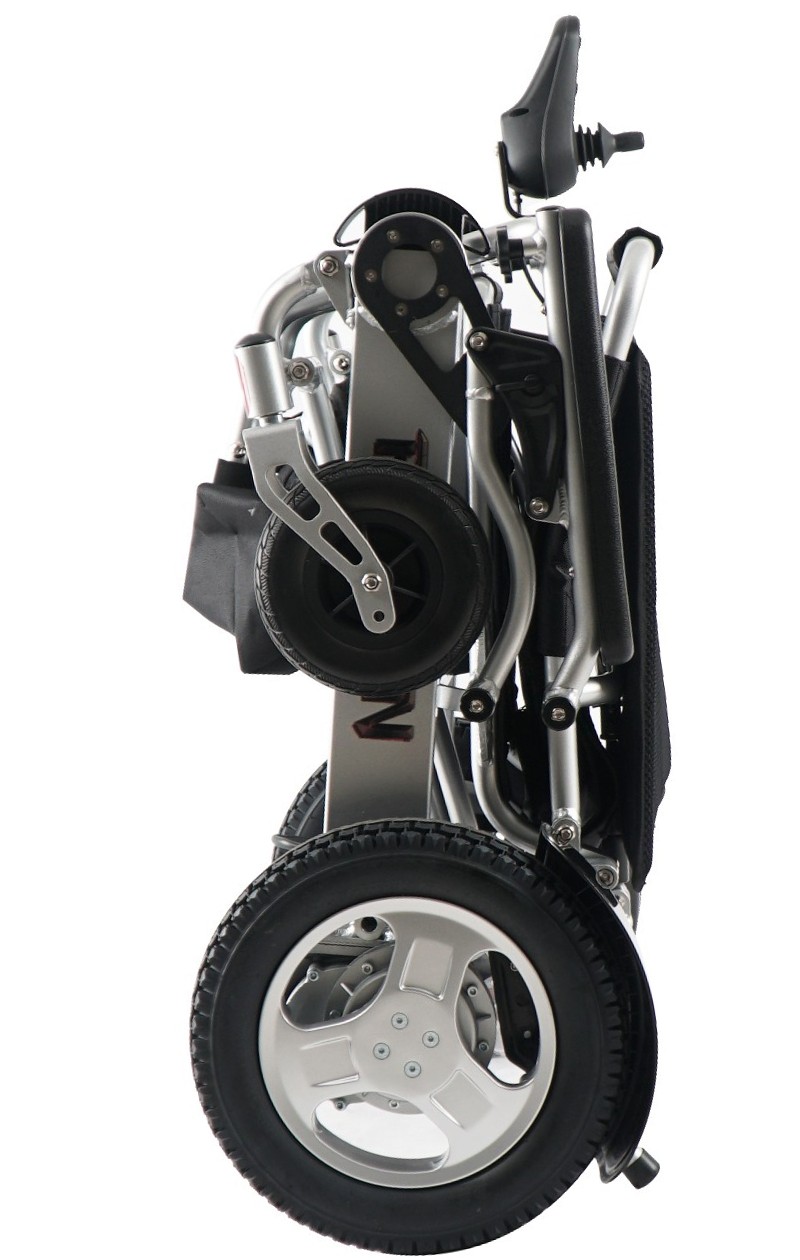

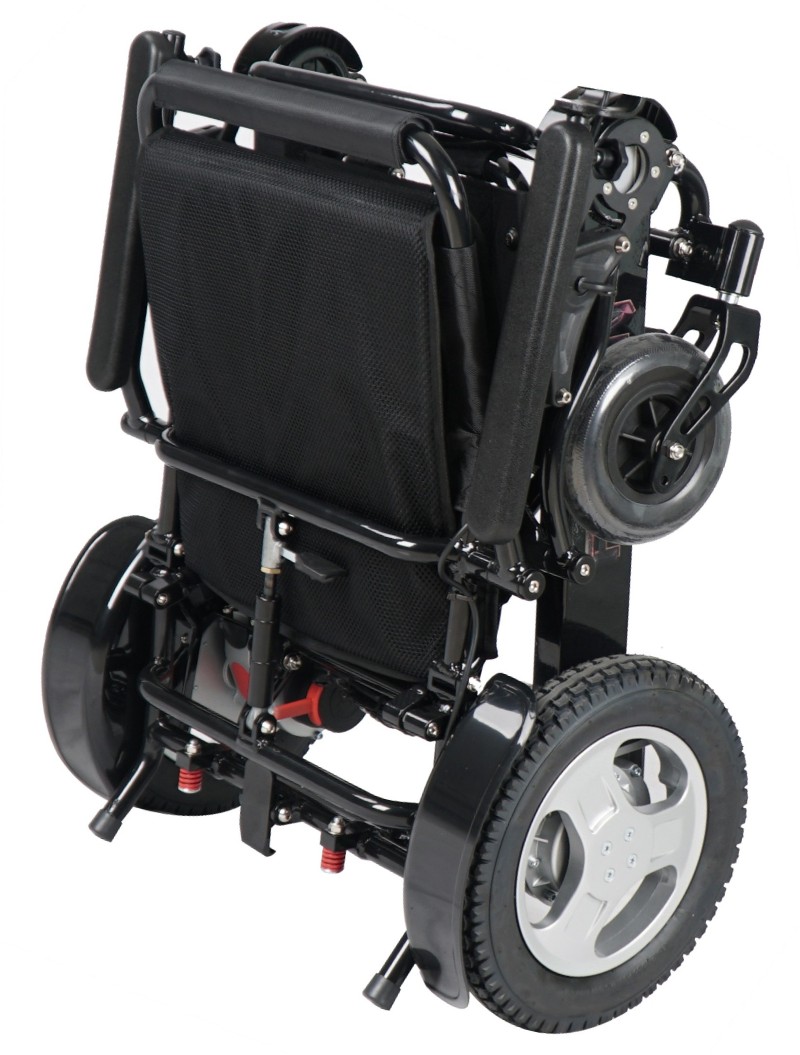

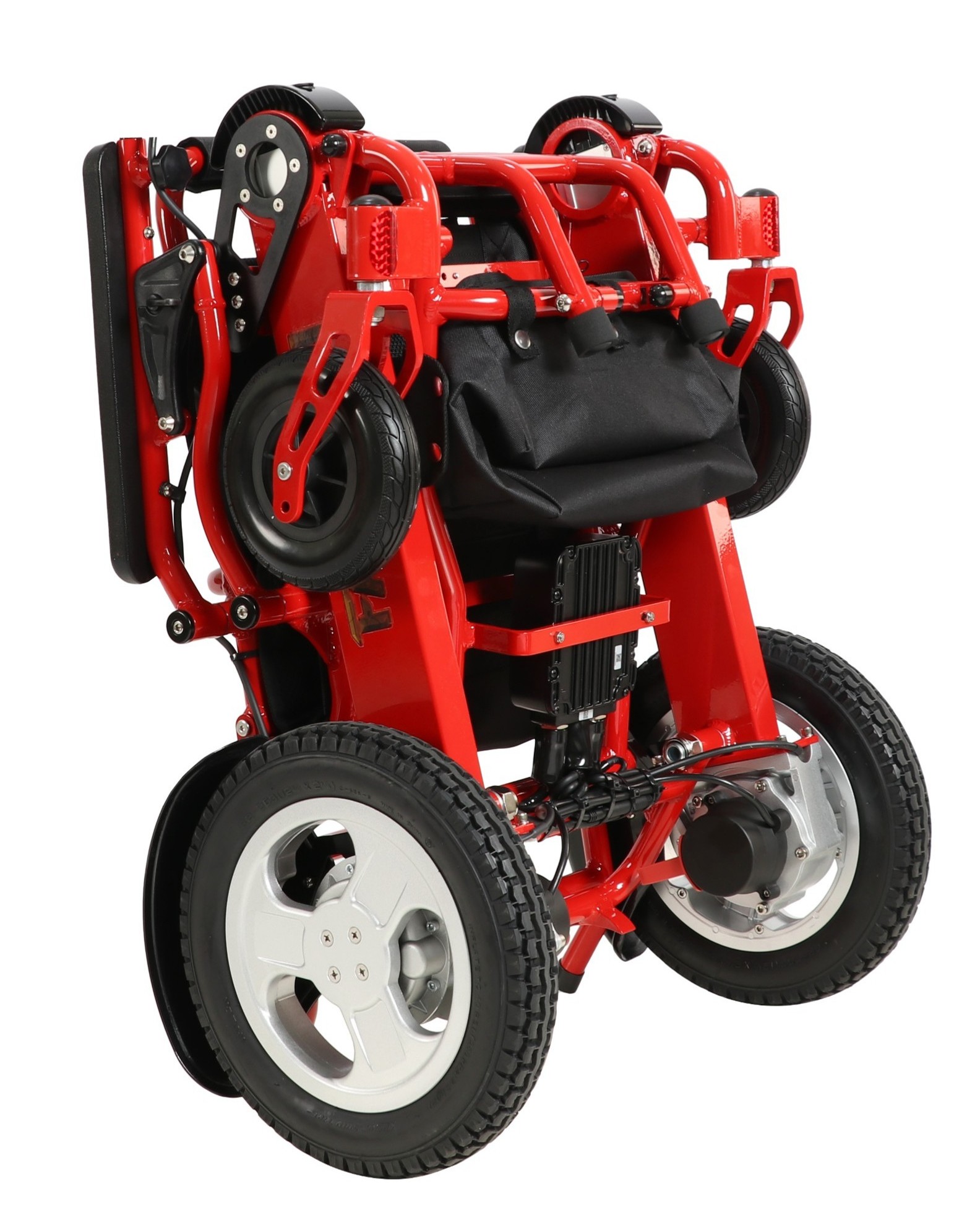

The
Falcon With Reclining Back Rest Folds Into A Compact
Area That Is Only (13" x 31" x 24") And Will Fit In
The Trunk Of Most Any Car. Even A Small Compact Car
Will Accommodate The Falcon Folding Power Wheelchair.
Anti-Tip Wheels
Offer The User A Piece Of Mind Knowing That They Will
Help Prevent Them From Tipping Backwards.
Learn more About The
Falcon Portable 400 lb Capacity Bariatric (Reclining
Back) Power Wheelchair With The Educational Video's
Below.
|
|
|
|
|
|
The
Falcon Offers A Smooth Ride, Extreme Comfort,
Reclining Back Rest, Large Rear Tires, Battery Back Up,
Anti-Tip Wheels, Built In Anti-Theft System
& Lots Of Power. |
 |
|
 |

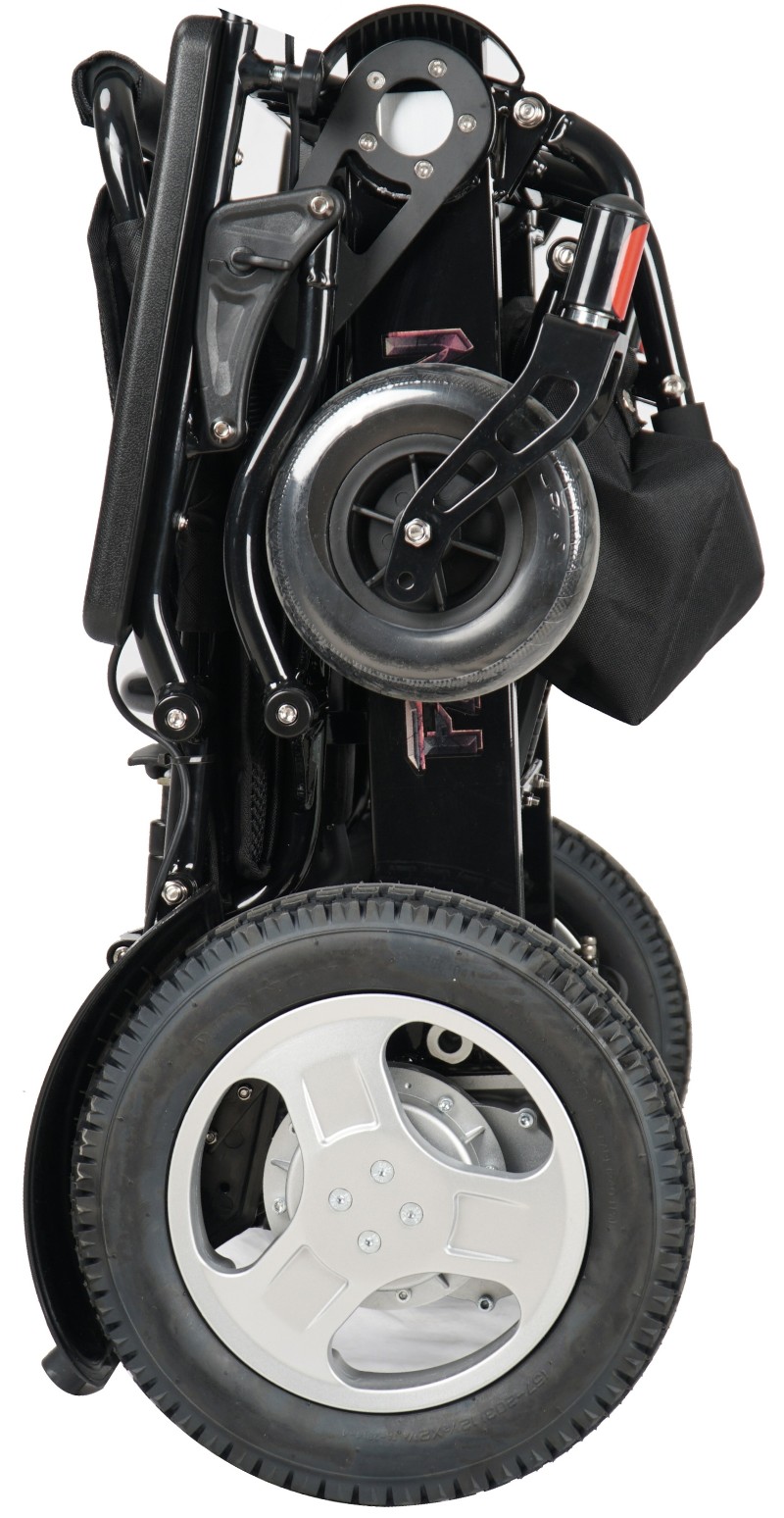

The
Falcon Folds Up In Just Seconds Into A Small Compact
Space. Perfect For Traveling By Plain, Buss, Train Or
Even A Cruise Ship And Fits In The Trunk Of Most Any
Car. |
| |
|
|
Easy
To Control Simple Touch Joystick Controller. That Can
Easily Be Moved From Left Arm To Right Arm Or From
Right Arm To Left Arm In Just Minutes To Accommodate
Both Right Handed & Left Handed Users. Virtual
Reverse When A User Moves The Joystick Backward The
Falcon Automatically Goes Backward. |
 |
| |
|
|
|
| |
|
|
( Click Any
Image To Enlarge ) |
| |
|
|
Specifications |
|
Specification |
Metric |
Imperial |
|
Model |
D09 |
|
|
Unfolded Size |
863 *
609 * 914 mm (L*W*H) |
34" *
24" * 36" (L*W*H) |
|
Folded Size |
584 * 330 * 787 mm (L*W*H) |
23" *
13" * 31" (L*W*H) |
|
Weight Capacity |
180 kg |
400 Lbs |
Seat
|
|
|
|
Width |
482mm |
19" Inch |
|
Depth |
421mm |
17" Inch |
|
Height |
457mm |
18" Inch |
|
Padding |
Memory Foam |
|
|
Back Rest |
|
|
|
Back Height |
400mm |
15.75" Inch |
|
Reclining |
Yes (40 Degrees) Infinite Positioning |
|
|
Motor |
|
|
|
Type |
brushless DC motor |
|
|
Rated Power |
250 W*2pcs |
|
|
Input
Power |
DC 24V |
|
|
Brake System |
intelligent electromagnetic
brake |
|
|
Battery |
|
|
|
Type |
Lithium Battery
(Airline Approved) |
|
|
Capacity |
150 Watt Hour Each*2pcs |
|
|
Output Voltage |
DC 24V |
|
|
PCS |
Standard with two |
|
|
Controller |
|
|
|
Type/Plug Type |
assist
type/European
standard,
2 core |
|
|
Input Power |
AC 100-220 V,
50-60Hz |
International (Use
Anywhere In The World) |
|
Output Voltage/Current |
DC 24V, 2A |
|
|
Front
Wheel |
|
|
|
Front Casters |
(180 mm x 45 mm) |
(7" × 1.77") |
|
Type |
solid tire |
|
|
Material |
PU |
|
|
PCS |
2 PCS |
|
|
Rear Wheel |
|
|
|
Outer Diameter/Tire
Width |
(320 mm x 57 mm) |
(12.5" ×2.25") |
|
Type |
Solid tire |
|
|
Material |
PU |
|
|
Number |
2 PCS |
|
|
Weight |
|
|
|
Without Battery |
23.5 kg |
50 Pounds |
|
With two Batteries |
26.5kg |
58 Pounds |
|
Maximum Grade |
12° |
|
|
Driving Range |
35km/
two batteries |
22 Miles |
|
Max Speed |
6 km/h |
(3.75 mph) |
|
Turning Radius |
835 mm |
32" |
|
Highest Obstacle
Capability |
40 mm |
(1.57") |
|
