Open Box Phoenix Power Wheelchair







The Phoenix Is Easily One Of The Worlds Lightest Foldable Portable Power Wheelchairs. Weighting Only 44 Lbs And Providing Many Upgrades And Improvements Not Found In Comparable Power Chairs. For Example Anti Tip Wheels, Lateral Arm Supports That Allow A User To Support Their Enter Body Weight On The Arm Rest, Flip Up Fold Away Footrest That Folds "Completely Out Of The Way" And Auto Connect Batteries With Battery Gage Indicator Built On To Each Battery Independently.



The Award Winning Phoenix Is One Of Americas Favorite Power Wheelchairs Due To Its Ability To Easily Fold & Unfold With Almost No Effort Into A Small Compact Compartment.



The Phoenix Is Powered By Two 180 Watt Motors. That's A Total Of 360 Watts Providing Lots Of Torque & Power Even When Going Up Ramps, Hills And Inclines.



Ships Fully Assembled.!

No Tax & No Shipping.!

Two Year Warranty.!













The Phoenix Is Equipped With Two 24v 140 watt Auto-Connect Lithium-ion Battery Packs.



The Phoenix Only Requires One Of The Two Battery Packs Provided Making the 2nd Battery Pack A Back Up For Those Times You Realize You Forgot To Charge The Battery. Simply Slip In The Extra Battery And Off You Go.



Some Users Choose To Use Both Battery Packs At The Same Time Simultaneously. This Will Double Your Range Allowing You To Travel Twice The Distance Before You Will Need To Recharge.



Batteries Are Now Auto Connect & Disconnect. Meaning No More Need For Difficult Cumbersome Plugs, Now You Simply Slide In And Out.

The Phoenix Is Is Made Of A High Strength Aircraft Quality Aluminum Alloy Making It Very Strong And Extremely Light Weight.

The Phoenix Is Also Equipped With An Easy Fold Clip Allowing Even The Most Challenged Users The Ability To Fold And Unfold The Phoenix.



Now A Standard Feature On Every Phoenix, Lateral "Arm Supports" Making The Flip Up Arm Rest Incredibly Strong. Users Can Now Support Their Full Body Weight On The The Top Of Arm Rest With No Concern Of Excessive Deflection Or Bending.

Not only is the Phoenix extremely light and easy to manage, it is perfect for air travel, trains, busses and cruise ships or any trips that are long-distance it’s also FAA (Federal Aviation Association) Airline Travel Approved! The Phoenix comes with TWO (one is FREE) Airline Compliant Non-Spill-able Lithium-Ion Batteries. You can take your Phoenix on airplanes, cruise ships, trains, public transportation and in taxi cabs (or with Uber or Lyft).






Large Dual Posy-Traction Rear Drive Wheels That Provide Lots Of Traction Even In Grass, Dirt & Gravel.

Heavy Duty Front Casters And Front Forks That Can Easily Handel A Weight Capacity Of 285 Lbs As Well As Tolerate High Impact From Rough Terrain.

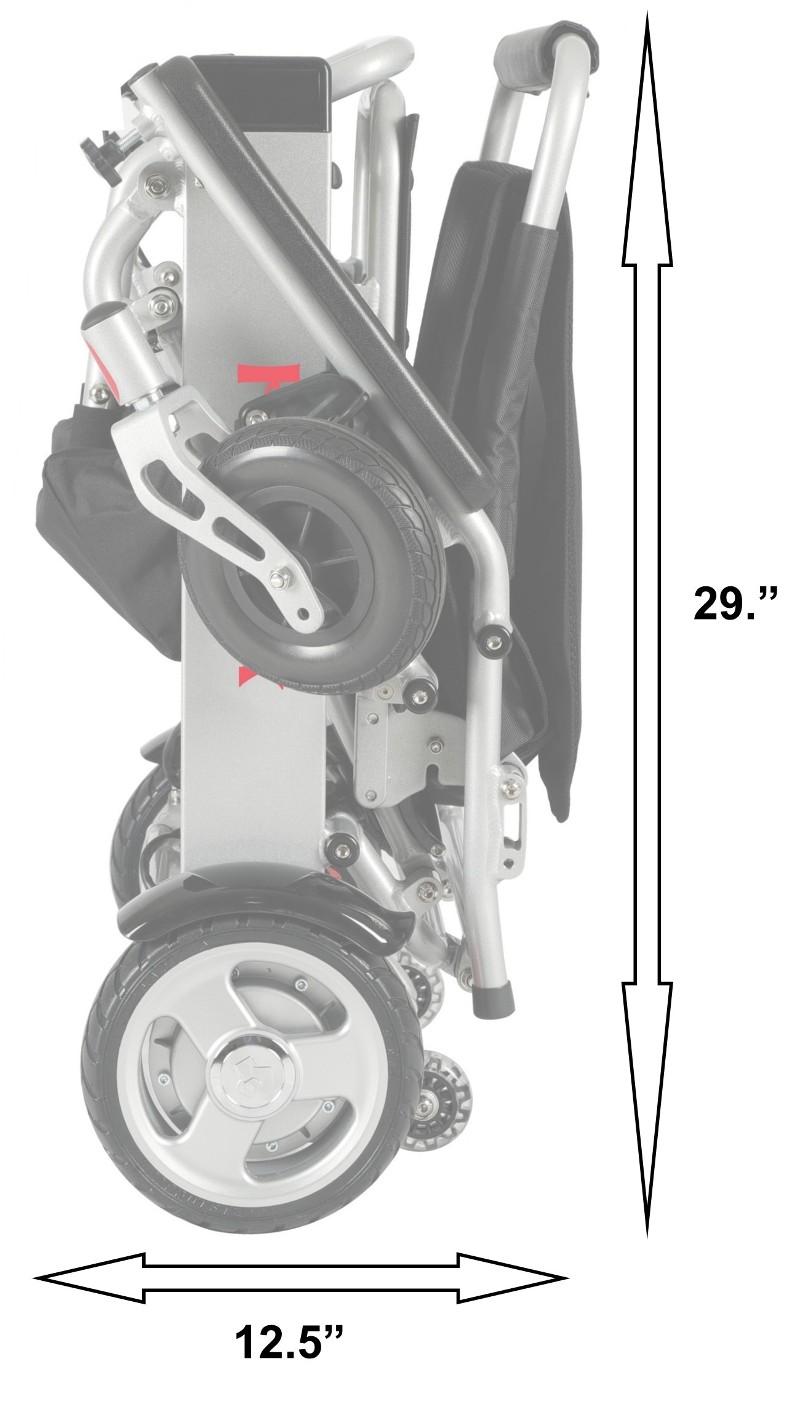

The Phoenix Will Fold Into A Compact Area That Is Only (12.5" x 29" x 24") And Will Fit In The Trunk Of Most Any Car. Even A Small Compact Car Will Accommodate The Phoenix Folding Power Wheelchair.
Two 180 Watt Motors Provide You With All The Power You Could Possibly Need Even On Hills & Inclines. Also The Phoenix Is Equipped With A Freewheel Or Neutral Option Allowing It To Be Pushed Manually From Room To Room.
The Phoenix Only Weighs 44 lbs And Can Easily Carry Up To 265 lbs. Comes Standard With A Memory Foam 19 Inch Wide Seat Cushion And Rear Anti Tip Wheels.
There Are Many Details That Make The Phoenix Power Wheelchair A Smart Choice. Like The Flat Free Tires, Endurance Front Casters, Programmable Joystick Control, Or the Memory Foam Seat Cushion. That Is Not Only Very Comfortable, The Breathable Nylon Fabric That Covers The Memory Foam Cushion Is Also Easily Removed And Washable For Lasting Freshness!

REMOVABLE ELEVATING LEG REST



Optional Removable Elevating Swing Away Height Adjustable Leg Rest Allow A User To Elevate One Or Both Of Their Legs. In Addition They Are Easy To Remove, Allowing Them To Be Completely Out Of The Way When A User Is Getting In Or Out Of The Phoenix. Lastly The Elevating Swing Away Height Adjustable Leg Rest Are Height Adjustable Making It Even More Comfortable To Each And Every Individual.

Rear Anti Tip Wheels Provide A Strong Layer Of Safety Preventing A User From Tipping The Phoenix Backwards And Provides The User With A Sense Of Security.

Arm Rest Expansion Kit Is Available For Those That Need More Space Between The Armrest. The Phoenix Comes Standard With 19 Inches Between Each Armrest. This Kit Allow You To Expand The Armrest To 22 Inches Between Each Armrest.

The Phoenix Offers A Smooth Ride, Extreme Comfort, Anti Tip Wheels, Supported Arm Rest, Auto Contact Battery Contacts, Battery Back Up & Lots Of Power.
The Phoenix Folds Up In Just Seconds Into A Small Compact Space. Perfect For Traveling By Plain, Buss, Train Or Even A Cruise Ship.
Easy To Control Simple Touch Joystick Controller. That Can Easily Be Moved From Left Arm To Right Arm Or From Right Arm To Left Arm In Just Minutes To Accommodate Both Right Handed & Left Handed Users.
The Phoenix Lightweight Portable Folding Power Wheelchair Weighting Only 44 Pounds Is super Lightweight With All The Features Every User Wants To See. A Memory Foam 19 Inch Wide Seat, Auto Contact Lithium-ion Batteries, Lateral Arm Rest Supports, Large Footrest That Folds Completely Out Of The Way & Easy Clip Fold & Unfold.
Optional Fully Adjustable Rehab Quality Headrest. Allow The Users That Need It To Support Their Neck & Head. This Headrest Is Virtually Adjustable To Any User Even Those With The Most Extreme Needs.



The Phoenix Has A Unique Design That Makes Use Of The Hollow Space In The Aluminum Frame For The The Batteries On Both Sides. This Genius Engineering Design Saves Space And Weight Making Life Even Easier For You.

The Dual Lithium Batteries Provide Lots Of Power For A Longer Time And They Can Be Fully Recharged and 30 Minutes. Most Power Wheelchairs Take Eight Hours To Recharge.
Optional Off-Board Charging Allows A User To Charge The Batteries While On The Phoenix Or Simply Remove Them And Charge Them Directly With No Need For The Chair To Do So.



Please Note: The Appearance Of This Charger Is Subject To Change Without Notice.

The Phoenix Folds Up Easily Into A Compact Size Allowing It To Fit In The Trunk Of Most Any Car, Truck Or SUV.

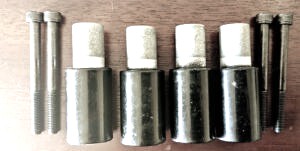

Optional Arm Extension Kit Extends The Arm Rest Out Providing 21" Between The Arm Rest Giving The User Even More Space For Larger Individuals That Need It.

Specification Metric Imperial

Model

Phoenix


Unfolded Size 940 * 630 * 950 mm (L*W*H) 37" * 24.5" * 37" (L*W*H)

Folded Size

640 * 320 * 750 mm (L*W*H)

25" * 12.5" * 29" (L*W*H)

Weight Capacity

120 kg

265 Lbs
Seat


Width Between Arms 482mm 19" Inch
Cushion Width 482mm 19" Inch
Cushion Depth 421mm 17" Inch
Height 457mm 18" Inch
Padding Memory Foam

Back Rest




Back Height 400mm 15.75" Inch
Motor

Type

brushlesDmotor



Rated Power

180 W*2pcs



Input Power

DC 24V



Brake System

intelligent electromagnetic brake



Battery





Type

Lithium Battery (Airline Approved)



Capacity

150 Watt Hour Each*2pcs



Output Voltage

DC 24V



PCS

Standard with two



Controller





Type/Plug Type

assist type/European standard, 2 core



Input Power

AC 100-220 V, 50-60Hz

International (Use Anywhere In The World)

Output Voltage/Current

DC 24V2A



Front Wheel





Front Casters

(180 mm x 45 mm)

(7" × 1.77")

Type

solid tire



Material

PU



PCS

PCS



Rear Wheel





Outer Diameter/Tire Width

(203 mm x 57 mm)

(8." ×2.25")

Type

Solid tire



Material

PU



Number

PCS



Weight





Without Battery

21 kg

44 Pounds

With two Batteries

23.5kg

52 Pounds

Maximum Grade

14°



Driving Range

35km/ two batteries

22 Miles

Max Speed

km/h

(3.75 mph)

Turning Radius

835 mm

32"

Highest Obstacle Capability

40 mm

(1.57")
Owners / Users Manual Phoenix Power Wheelchair Manual






The Phoenix Is One Of The Worlds Lightest Foldable Power Wheelchair With Reinforced Laterally Supported Arm Rest That Will Support The Full Weight Of a The User On The Arm Rest.









Two Full Year Limited Warranty.




Your new Phoenix comes with a full Two Full Year Warranty. 1st Year Is In Home Service Warranty. Stop worrying about who would repair your wheelchair or how you would get your wheelchair to them. This warranty has you covered! We will send a trained professional repair technician directly to your home in the event your wheelchair should need repair. We cover the entire United States. The map below indicates the location of our service affiliates. 2nd year covers parts only.











(Click Image Above To Inlarge)

  OPTIONAL



SAMSON CASE

The Samson is a Taylor made (Hard Shell Case) specifically designed to provide the perfect protection to the Phoenix when traveling. Now you no longer need to worry about whether the airlines, cruise ships, bus's or train's will damage your Phoenix when traveling. The Samson (Hard Shell Case) almost entirely eliminates the possibility of any damage to the Phoenix.


Size: 36.5" X 26" X 17"

Weight: 47 LBS

Personalize your new wheelchair. Its Free & Easy, Simply select letter of font style below you like and enter it in the order form along with the name or text you would like to use to personalize your new wheelchair.

A



B


C   D

E   F

G   H

I   J

  We include a Oxygen Tank Holder Free with the purchase of this wheelchair. This Oxygen Tank Holder will hold most any size tank. The chart shown on the left indicates with a red arrow all tank sizes this tank holder will accommodate. Also included free are all items listed below.

The Phoenix Lightweight Power Wheelchair Has A Durable High Quality Automotive Finish That Is Extremely Resistant To Scratches & Chips, However In The Event You Would Like The Ability To Touch Up Scratches If They Should Occur Over The Years We Have Made Touch Up Paint Available Free With Every Order.

The Phoenix Comes With A Limited Full 2 Year Warranty. The First Year Covers Both Parts & Labor And The Second Year Covers Parts Only. Warranty Is On Defective Parts Only.





The Phoenix Folding Power Wheelchair



Open Box Phoenix Folding Power Wheelchair
Qty: Price: $1712.

Please Select Color:
Silverado Silver
Inferno Red

Extra Lithium Battery Pack:
No Thank You
Extra Lithium Battery Pack
Free

DX Halogen Head Light With Dual Pitch Horn:
No Thank You
DX Halogen Head Light With Dual Pitch Horn
Free

All Weather Protective Nylon Travel Cover With ID Window:
No Thank You.
All Weather Protective Nylon Travel Cover With ID Window
Free

Cup Holder:
No Thank You
Cup Holder
Free

Automotive Car Charger:
No Thank You
Automotive Car Charger
Free

International Household Charger:
No Thank You
International Household Charger
Free

Arm Bag:
No Thank You
Arm Bag
Free

Flat Free Tires:
No Thank You
Flat Free Tires
Free

Keep It New Touch Up Paint:
No Thank You.
Keep It New Touch Up Paint
Free

Flip Up Adjustable Arm Rest:
No Thank You.
Flip Up Adjustable Arm Rest
Free

Orange Safety Flag:
No Thank You
Orange Safety Flag
Free

Auto Open Umbrella With Mounting Bracket:
No Thank You
Auto Open Umbrella With Mounting Bracket
Free

Oxygen Tank Holder:
No Thank You
Oxygen Tank Holder
Free

Two Year Extended Limited Warranty:
No Thank You
Two Year Extended Limited Warranty
Free

Under Seat Basket:
No Thank You
Under Seat Basket
Free

Attendant Controller Bracket:
No Thank You.
Optional Attendant Controller $178.

Head Rest:
No Thank You.
Head Rest $138.


Vulcan Lift:
No Thank You
Vulcan Lift $1187.


Samson Hard Shell Case:
No Thank You
Samson Hard Shell Case $587.00


Extended Warranty Option:
1st Year Parts & Labor 2nd Year Parts Only Included
Free
3 Years Add One Additional Year Parts To Your Warranty $200.

Heavy Duty Rear Basket:
No Thank You
Heavy Duty Rear Basket $117.

Select Shipping:
Standard Ground 3 To 5 Days
Free
Three Day Air $289.
Two Day Air $397.
Next Day Air $552.


(Optional) Personalize It Free By Entering Information Below, Otherwise Leave Blank.!

Enter Font Code: Enter The Name To Personalize It.:

Select Color Of Personalized Logo:









See Our Unconditional Guarantee
