VH-AM Auto Moto Carrier

PRODUCT INFORMATION

Features

What's Included

Specifications

• Fits any class III or IV hitch
• Powder coat finish
• Easily stores away
• Boxed for UPS shipping
• Reversible Rails

• Anti-tilt lock bracket

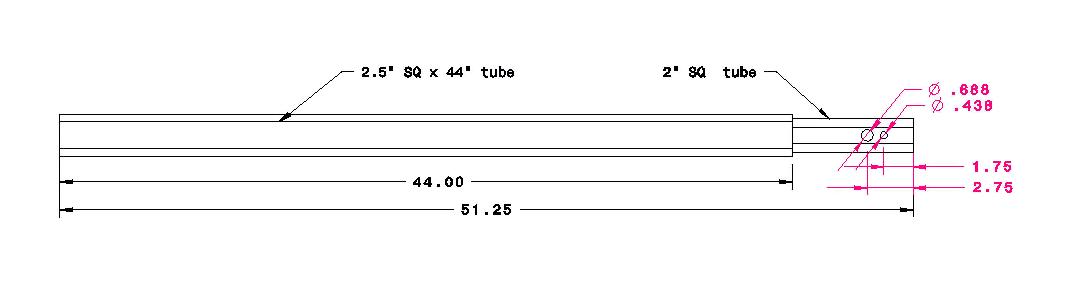

• 44 in. main tube
• 3 wheel stops
• Four retractable tie down bars
• 3 ramps
• 2 reflectors

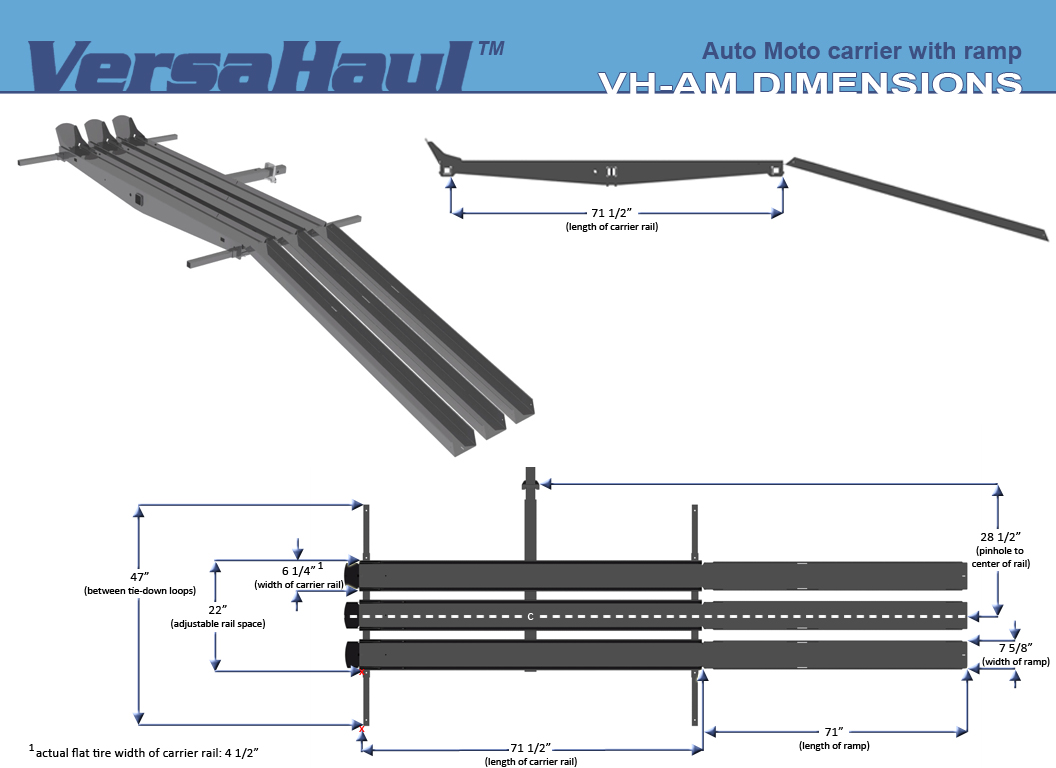

• Dimensions
• Model Number: VH-AM
• Description: Auto Moto Carrier
• Approx. Shipping Wt.: 244 lbs.
• Max Load: 600 lbs.
• Length of carrier rail: 71 in.
• Width of carrier rail: 6.5 in.
• Actual flat-tire width of carrier rail: 4.72 in.
• Pin to center of rail: 29 in.
• VH-AM Instruction Booklet

Carrier

Hitch

Vehicle

• The VH-AM is designed to safely carry 600 lbs total but is limited to only 500 per rail.

• Most Class III hitches are rated for 500 lbs.

• Most Class IV hitches are rated for 1000 lbs.

• Low hitch: The VersaHaul main tube extends out of the hitch at the same level. Hitches low to the ground will not work properly.

• Recessed Hitches will shorten the length of the carrier tube.

• Your hauling weight may be limited by your vehicle's capacity to carry a load and your vehicle's suspension. Please refer to information regarding your specific vehicle.

PICTURES

Click on the item to see a larger picture.

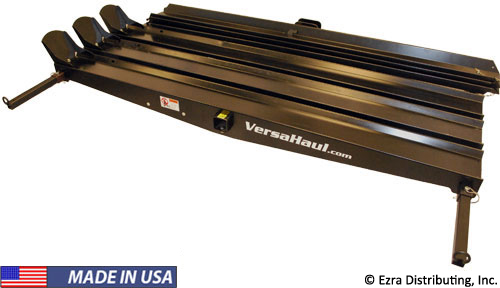

Versa Haul VH-AM Auto Moto Carrier
