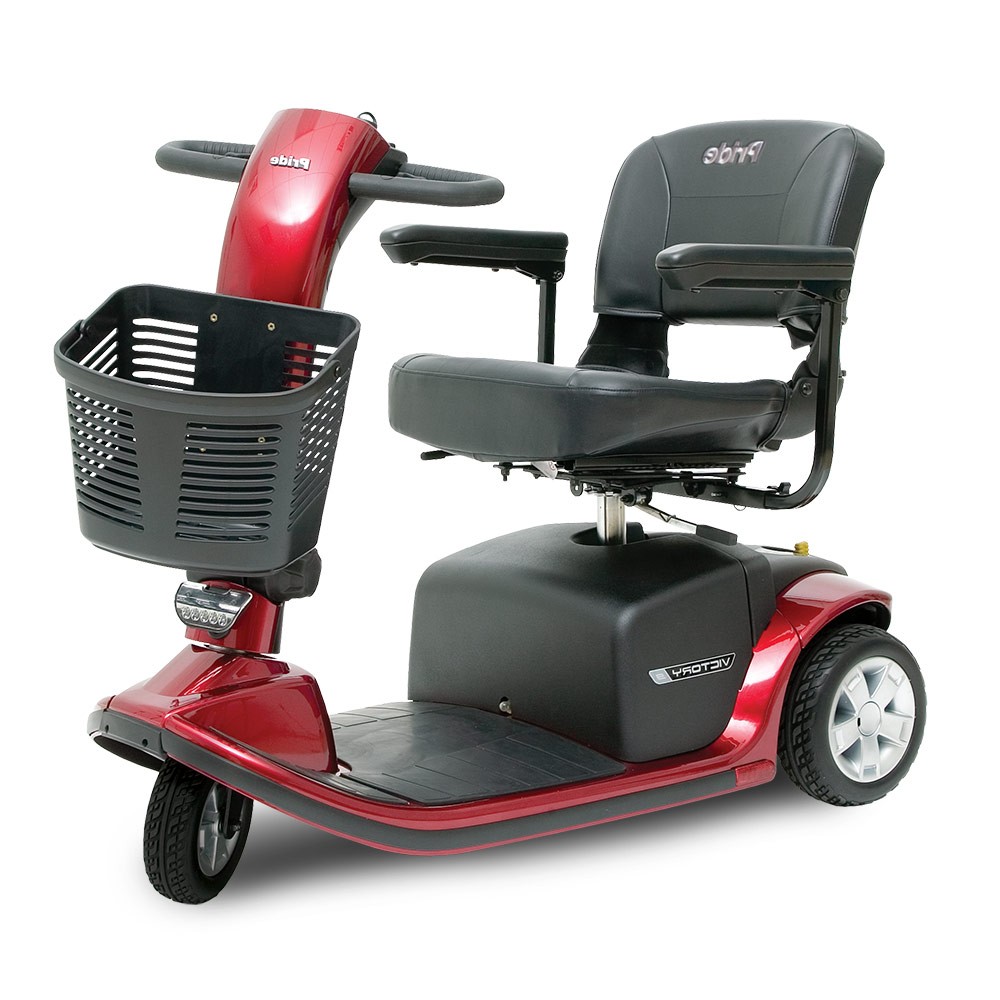

Pride
Victory 9
Three Wheel Scooter
|
FDA Class II Medical Device.
Prides Victory 9 mid-sized
portable mobility scooter with the heaviest part weighing
only 48 lbs. The Victory 9 is so popular because they are
well-designed, dependable, and have all the features you
need at a great value price! The Victory 9 feels
substantial, with a sturdy build, plenty of foot room and a
comfortable seat that rotates for easy access. Designed for
easy transport, feather-touch disassembly makes it possible
to take the Victory 9 scooter apart when traveling. |
A Infinitely Adjustable Tiller insures users
will archive the highest level of comfort.
Total
Weight: 166.5 lbs.
Delta
tiller
Flat free, non-scuffing tires
Bright LED headlight
Easy feather-touch disassembly
Top Speed: 5.25 mph
Drive Range: 13 miles
Heaviest Piece: 48 lbs.
Weight capacity: 300 lbs.
|
|
|
|
300
lbs. weight capacity
Up to 5.3 mph maximum speed
40.25" turning radius
Up to 13 miles per charge

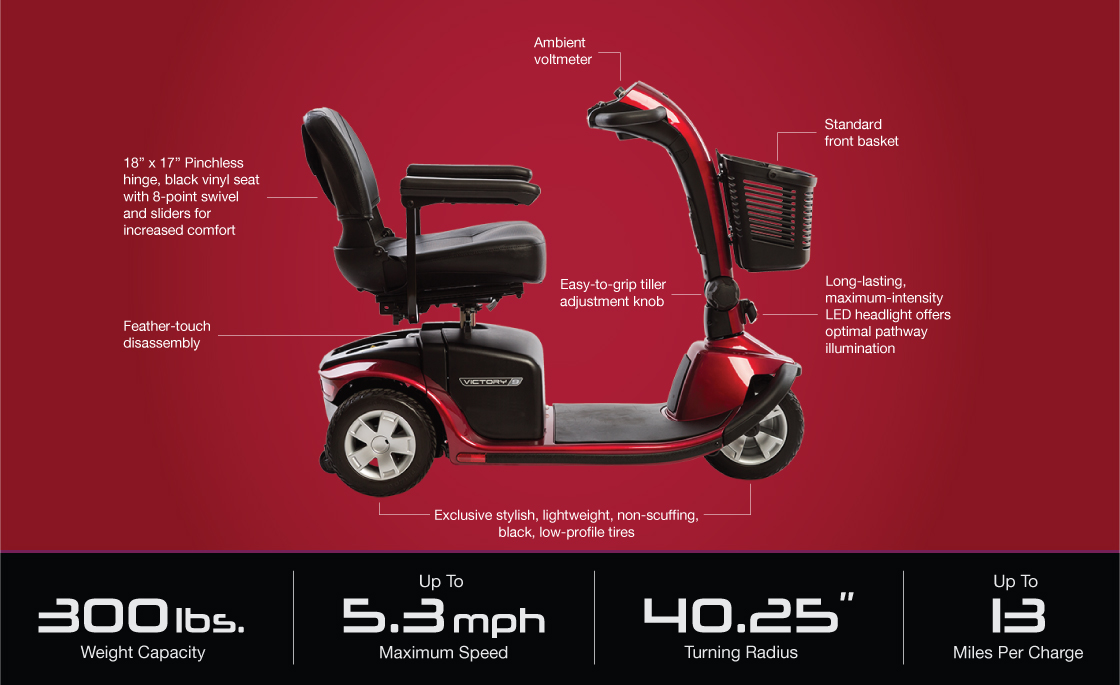

18" x 17" Pinchless hinge, black vinyl seat with 8-point
swivel and sliders for increased comfort
Feather-touch disassembly
Easy-to-grip tiller adjustment knob
Heavy duty, non-scuffing, low-profile tires
Delta tiller
Crush proof front basket
Easy-to-read Ambient Voltmeter

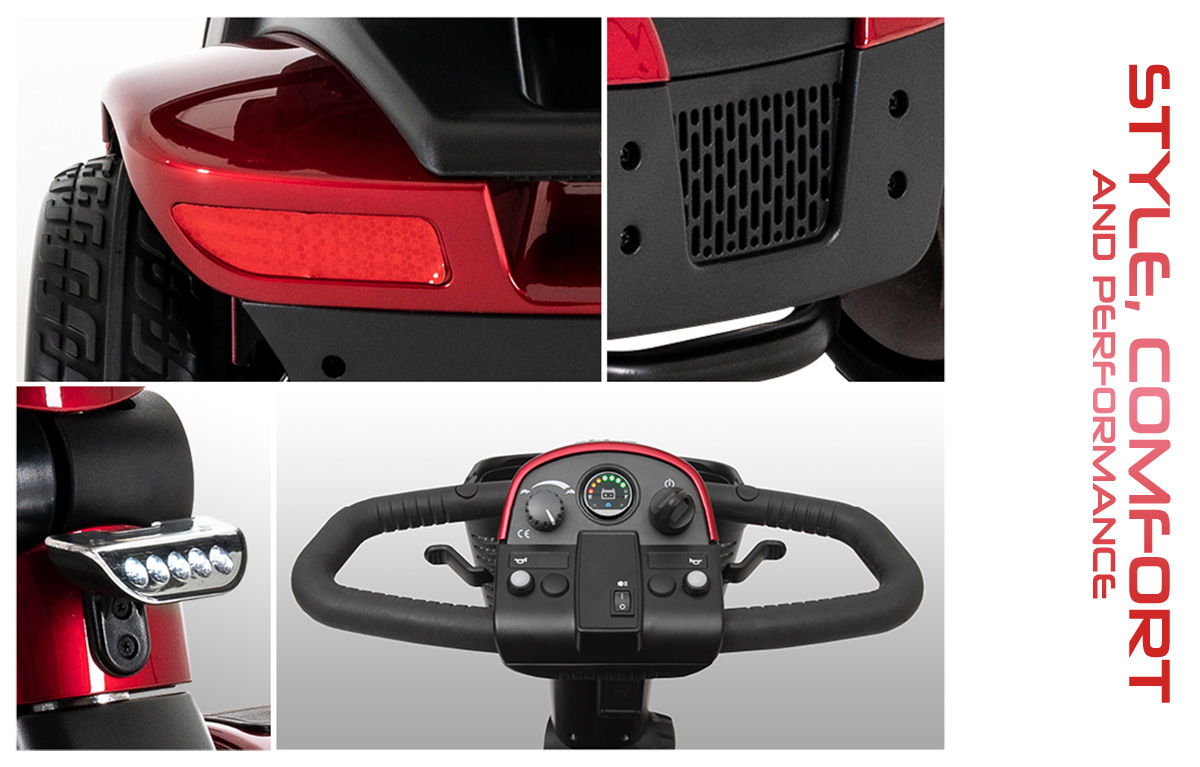

Long-lasting, maximum-intensity LED headlight offers optimal
pathway illumination
Auto connecting front to rear harness
Easy access tiller-mounted charger port
|
Model |
Victory 9, 3 wheel |
Victory 9, 4 wheel |
Model Number |
SC609 |
SC709 |
Front Tires |
3" x 8" Solid |
3" x 9" Solid |
Rear Tires |
3" x 9" Solid |
3" x 9" Solid |
Maximum Speed* |
Up to 5.25 MPH |
Up to 5.25 MPH |
Ground Clearance |
2" at mid frame |
2.25" at mid frame |
Turning Radius** |
40.25" |
51.5" |
Overall Length** |
43.5" |
45.5" |
Overall Width of Base** |
22.25" |
22.25" |
Seat-to-Ground Height Range |
19.25"-20.75" |
19.25"-20.75" |
Seat Type |
Foldable, Molded Plastic (18"x17") |
Foldable, Molded Plastic (18"x17") |
Weight** |
117.5 lbs |
131 lbs |
Seat-to-Deck Height Range |
17.25"-18.75" |
17.25"-18.75" |
Battery Weight |
24.5 lbs. each |
24.5 lbs. each |
Battery Requirements |
(2)U1 |
(2)U1 |
Maximum Range Per Charge* |
Up to 13 miles |
Up to 13 miles |
Battery Charger |
Off-board, 3.5A |
Off-board, 3.5A |
Maximum Weight Capacity |
300 lbs. |
300 lbs. |
Standard Body Colors |
Candy Apple Red, Viper Blue |
Candy Apple Red, Viper Blue |
Weight of Heaviest Piece** |
48.5 lbs. (Front section) |
59 lbs. (Front section) |
Medicare Code Coverage |
K0800 - Group 1 Standard |
K0800 - Group 1 Standard |
Warranty |
Lifetime limited on frame;
2-Year limited on Electronics;
2-Year limited on Drivetrain |
Lifetime limited on frame;
2-Year limited on Electronics;
2-Year limited on Drivetrain |
Victory 9 |
More Info |
|
Owners Manual |
Manual |
|
|
|
|
Meeting and Exceeding High Standards for your Peace of Mind.
Pride FDA Class II Medical Devices are designed to aid
individuals with mobility impairments.
Your Pride product has undergone thorough product testing to
ensure safety, durability and performance.
Our power chairs, scooters and lift chairs are Food & Drug
Administration (FDA) approved medical products that require
specific testing prior to release for public use.
The testing requirements accepted by the FDA were developed by
the American National Standards Institute/Rehabilitation
Engineering & Assistive Technology Society of North America
(ANSI/RESNA).
The tests are conducted in accordance with the requirements of
the ANSI/RESNA Test Standards and complement an additional
stringent testing regiment developed by Pride's Research &
Development Team.
All products have passed, and in many cases, exceeded test
criteria set forth, assuring the high level of quality
synonymous with Pride.
Some of the items our testing criteria include are:
- Product Stability & Brakes
Effectiveness Tests
- Fatigue & Impact Strength
Verification Tests
- Overall Product
Performance Verification
- Dimensional Requirement
Compliance
- Product Durability &
Reliability Testing
- Material Protective
Coating Testing Verification
- Misuse and Abuse Testing
- Ergonomic Verification
- Environmental Testing for
Adverse Weather Operation Conditions
- Electronic Systems
Performance and Durability
- Chemical and
Bio-Contamination Analysis Testing for Toxicity Verification
- Cal 117 Flammability Test
Compliance for Seating Foam and Fabric Components
- UL94VO Flammability
Testing for Compliance of Plastic Components
- Electromagnetic
Compatibility (EMC)
|
The Craftsmen (2) In (1) 550 XL
Carrier's loading ramp is 33" wide by 64" long providing a
gradual slope for easy loading of your scooter or
wheelchair. A solid position handle on the ramp allows for
easy folding and unfolding and tie down straps are included
with rubber coated hooks which can be hooked onto any of the
10 tie down holes featured on the 4 1/4" tall ramp sides.
The ramp is easily attached even after the carrier has been
attached to the vehicle making the installation very easy.
The rear of the carrier has 2 reflectors for greater
visibility at night. |
|
|
Pride Victory 9 3 Wheel Scooter |
|
|
