Pride
Victory 9 4
Wheel Scooter
|

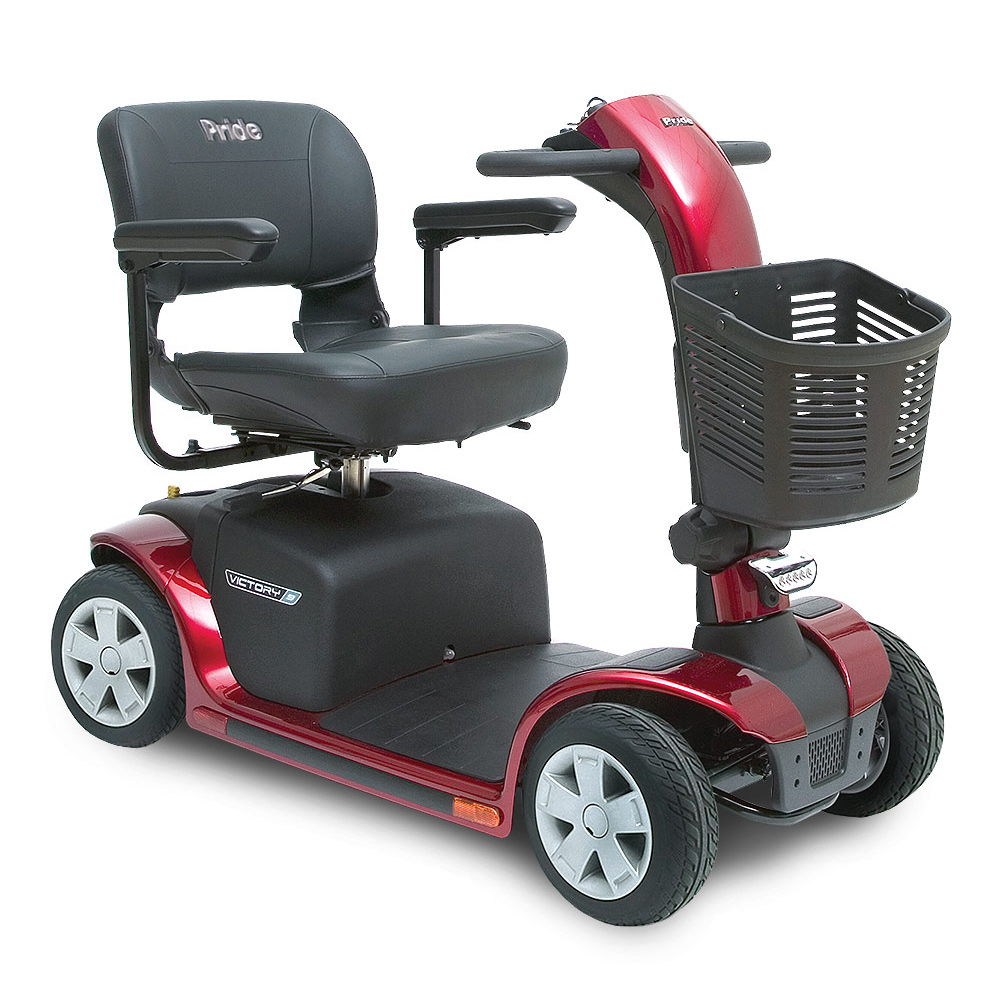

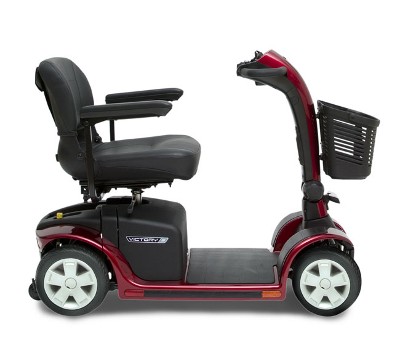

The high performance extremely stable 4 wheel Victory 9
mobility scooter is both built as a full size long range
mobility scooter that delivers a smooth comfortable ride and
designed for easy transport with feather-touch disassembly
making it possible to take the four wheel Victory 9 scooter apart when
traveling with the heaviest piece weighing only 48 lbs. |
The full size
design combined with portability makes the Pride Victory 9 4 wheel scooter
very unique. It is not too large & not too
small and the 4-wheel Victory 9 can be used indoors while
performing exceptionally well outdoors. The sturdy
construction provides you with confidence to travel outdoors
any where you wish to go. The High Performance batteries
give it a 13 mile range on a single charge, and the charging
port is positioned up on the tiller for
easy access. On/Off board
charging
4 Flat Free, non-scuffing tires

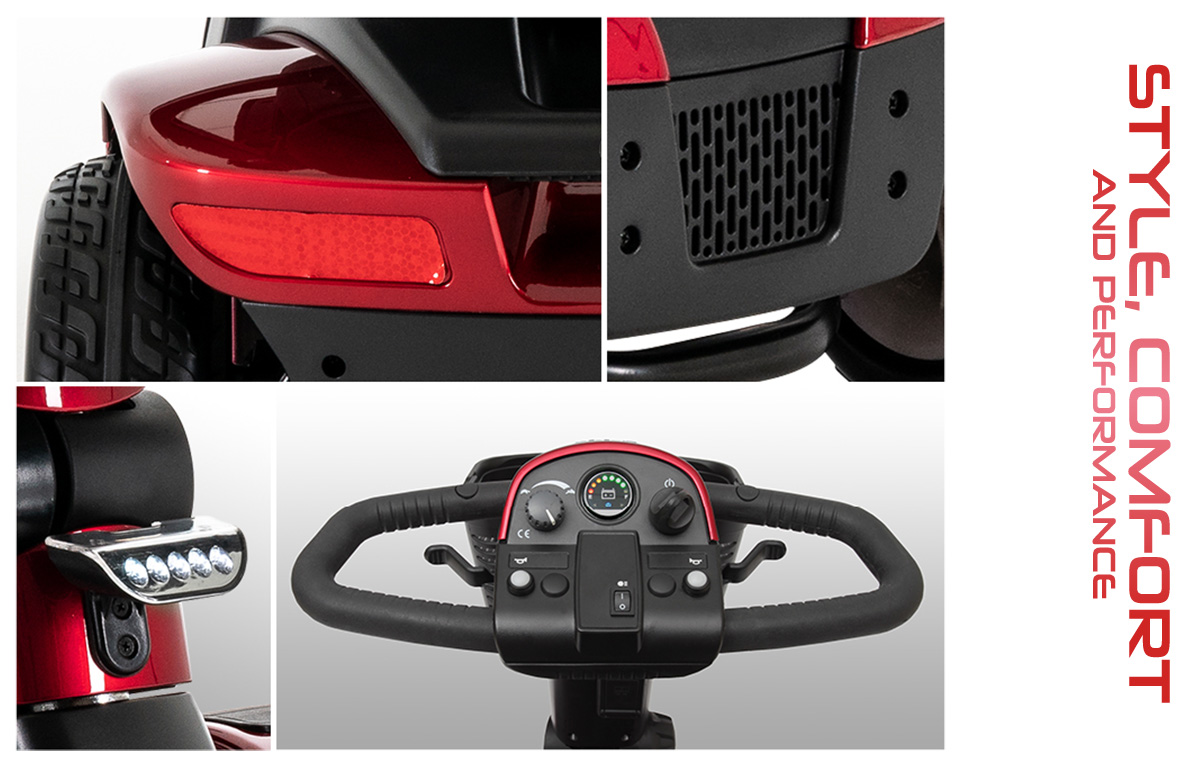

Bright LED Headlamp for safety
Delta Tiller
Top Speed: 5.25 mph
Drive Range: 13.00 miles
Heaviest Piece: 59 lbs.
Weight capacity: 300 lbs.
Weight: 180 lbs. |
|
|
|
|
|
|
|
Loaded
Delta Tiller
Speed Adjustment
Dial
Keyed Ignition
Battery Life Indicator
Full Light Package Controls
Horn
Feather Touch
Forward & Reverse Levers.
Free Wheel Leaver
that allows you to put this scooter into a freewheel or
neutral position allowing it to be pushed manually.
|
|
Rear Anti Tip
Wheels prevent the scooter from tipping back and the highly
adjustable arm rest flip up completely out of the way
The rear pouch is very convenient
for a great many things. |
|

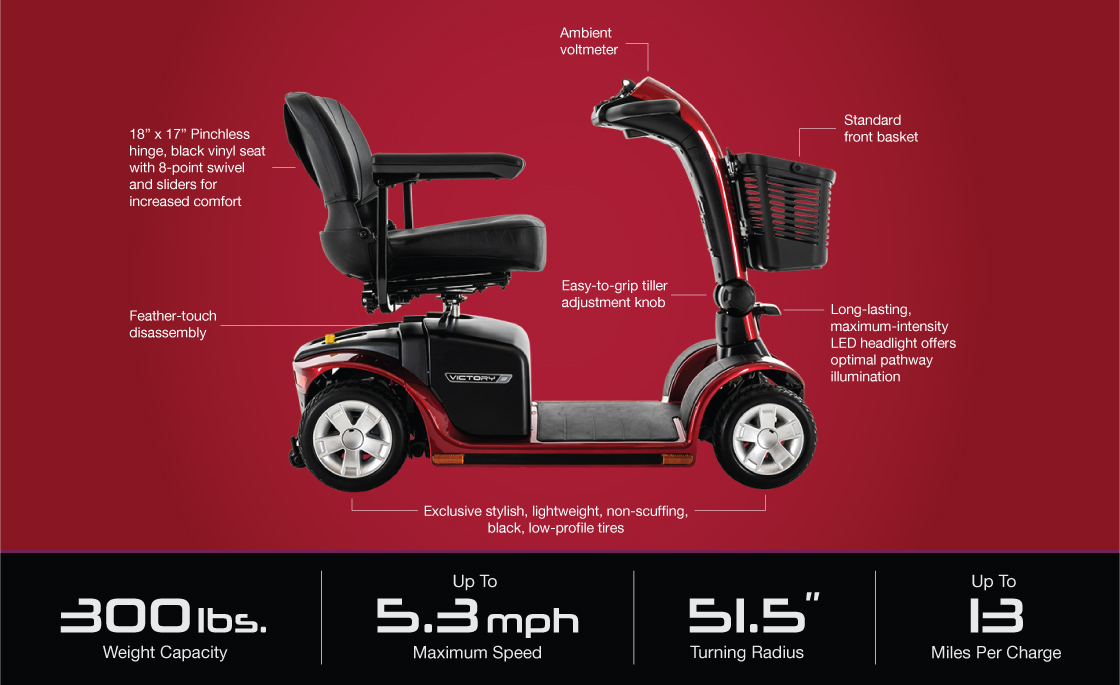

Highly
Portable
-
Delta tiller
-
Feather touch disassembly
-
Crush proof Front Basket
-
Black, non-scuffing tires
-
Back-lit battery gauge
-
Long-lasting, high intensity LED headlight
-
Auto connecting front to rear harness
-
Easy Grip Tiller adjustment knob
-
Easy access tiller-mounted charger port
-
Lightweight eight-position, pinch-less seat with sliders>
-
300 lbs. weight capacity
Model |
Victory 9 Three Wheel |
Victory 9 Four Wheel |
Model Number |
SC609 |
SC709 |
Front Tires |
3" x 8" Solid |
3" x 9" Solid |
Rear Tires |
3" x 9" Solid |
3" x 9" Solid |
Maximum Speed |
Up to 5.25 MPH |
Up to 5.25 MPH |
Ground Clearance |
2" at mid frame |
2.25" at mid frame |
Turning Radius |
40.25" |
51.5" |
Overall Length |
43.5" |
45.5" |
Overall Width of Base |
22.25" |
22.25" |
Seat-to-Ground Height Range |
19.25"-20.75" |
19.25"-20.75" |
Seat Type |
Foldable, Molded Plastic (18"x17") |
Foldable, Molded Plastic (18"x17") |
Weight |
117.5 lbs |
131 lbs |
Seat-to-Deck Height Range |
17.25"-18.75" |
17.25"-18.75" |
Battery Weight |
24.5 lbs. each |
24.5 lbs. each |
Battery Requirements |
(2)U1 |
(2)U1 |
Maximum Range Per Charge |
Up to 13 miles |
Up to 13 miles |
Battery Charger |
Off-board, 3.5A |
Off-board, 3.5A |
Maximum Weight Capacity |
300 lbs. |
300 lbs. |
Standard Body Colors |
Candy Apple Red, Viper Blue |
Candy Apple Red, Viper Blue |
Weight of Heaviest Piece |
48.5 lbs. (Front section) |
59 lbs. (Front section) |
Warranty |
Lifetime limited on frame;
2-Year limited on Electronics;
2-Year limited on Drivetrain |
Lifetime limited on frame;
2-Year limited on Electronics;
2-Year limited on Drivetrain |
Victory 8 Promo |
|
Victory_9
Info |
Owners Manual |
|
Owners Manual |
|
|
|
Meeting and Exceeding High Standards for your Peace of Mind.
Your Pride product has undergone thorough product testing to
ensure safety, durability and performance.
Our power chairs, scooters and lift chairs are Food & Drug
Administration (FDA) approved medical products that require
specific testing prior to release for public use.
The testing requirements accepted by the FDA were developed by
the American National Standards Institute/Rehabilitation
Engineering & Assistive Technology Society of North America
(ANSI/RESNA).
The tests are conducted in accordance with the requirements of
the ANSI/RESNA Test Standards and complement an additional
stringent testing regiment developed by Pride's Research &
Development Team.
All products have passed, and in many cases, exceeded test
criteria set forth, assuring the high level of quality
synonymous with Pride.
Some of the items our testing criteria include are:
- Product Stability & Brakes
Effectiveness Tests
- Fatigue & Impact Strength
Verification Tests
- Overall Product
Performance Verification
- Dimensional Requirement
Compliance
- Product Durability &
Reliability Testing
- Material Protective
Coating Testing Verification
- Misuse and Abuse Testing
- Ergonomic Verification
- Environmental Testing for
Adverse Weather Operation Conditions
- Electronic Systems
Performance and Durability
- Chemical and
Bio-Contamination Analysis Testing for Toxicity Verification
- Cal 117 Flammability Test
Compliance for Seating Foam and Fabric Components
- UL94VO Flammability
Testing for Compliance of Plastic Components
- Electromagnetic
Compatibility (EMC)
Pride Victory 9 4 Wheel Scooter |
|
|
